Without Air Conditioning

CAUTION: Before working an electrical system, obtain radio code and disconnect battery Ground (GND) strap.


NOTE:

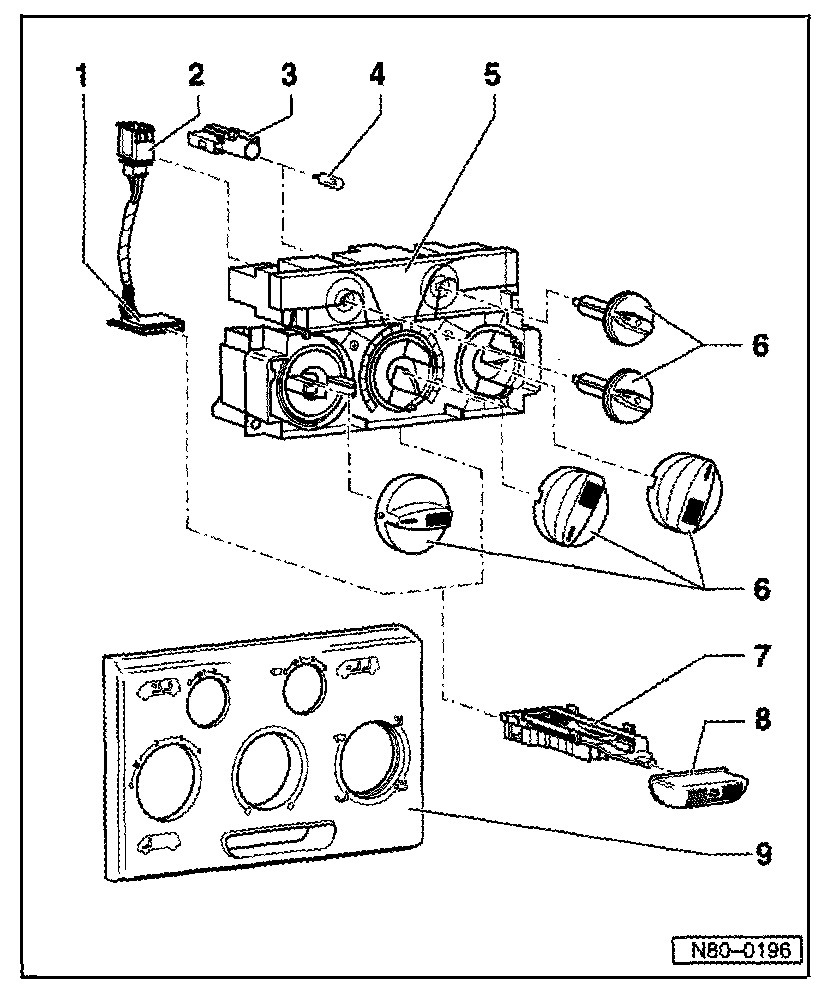

- Illustrated control from vehicle with additional (rear) heat exchanger and (rear) passenger compartment ventilation.


1 - Connector, 6 pin -T6-
2 - Connector, 6 pin -T6c-
3 - Illumination filter
4 - Illumination bulb -L16-
5 - Control assembly
With:
- Fresh air blower switch -E9-
- Warm air blower switch -E100-
- Fresh air blower switch -E179-
- Removing and installing
See 'Control Assembly.' Service and Repair
- Cables, installing and adjusting
See 'Air Duct Cable.' Service and Repair
6 - Rotary knobs
7 - Fresh air/recirculating flap switch -E159-
- With illumination bulb -L43-
- Removing:
- Remove assembly -5-.
- Release retainers between push buttons and controls.
- Press switch in direction of push button.
8 - Push button
9 - Control panel trim
