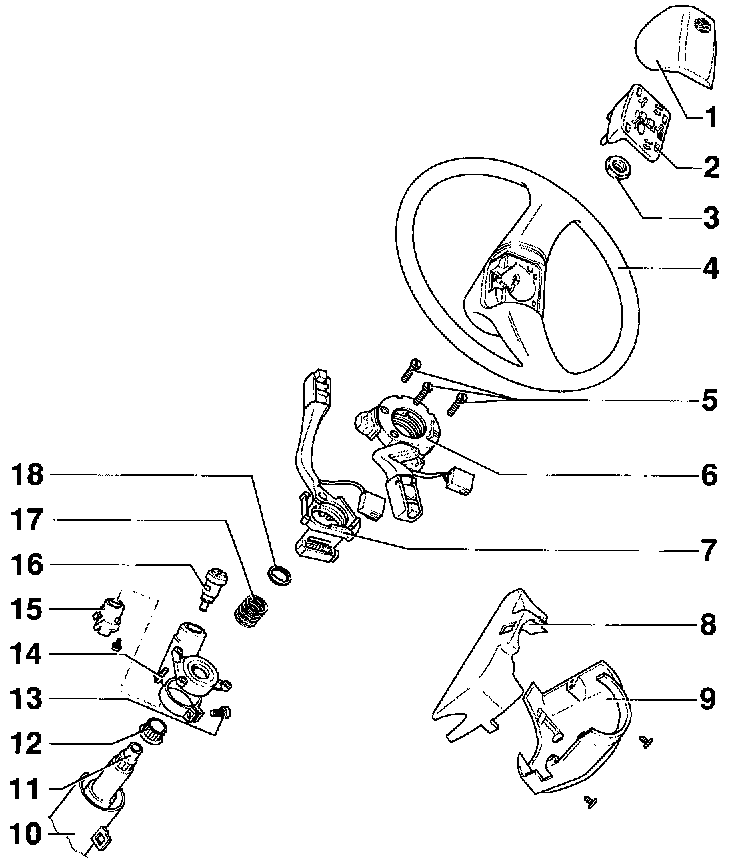

Steering Column

1- Horn pad
2- Horn plate
3- Hex nut
- 70 Nm, (51 ft lb)
4- Steering wheel
5- Steering column switch securing screws
6- Turn signal/ cruise control switch high and low beam, headlight flasher and emergency light switch
7- Windshield wiper, wipe/wash operation and multi4unction indicator switch
8- Upper steering column trim
9- Lower steering column trim
10- Column Tube
11- Steering column
12- Support ring
13- Steering column lock housing securing bolt
- 10 Nm, (7 ft lb)
14- Steering lock housing
15- Ignition switch-remove steering lock housing, then remove securing screws
16- Lock cylinder
17- Spring
18- lock washer
