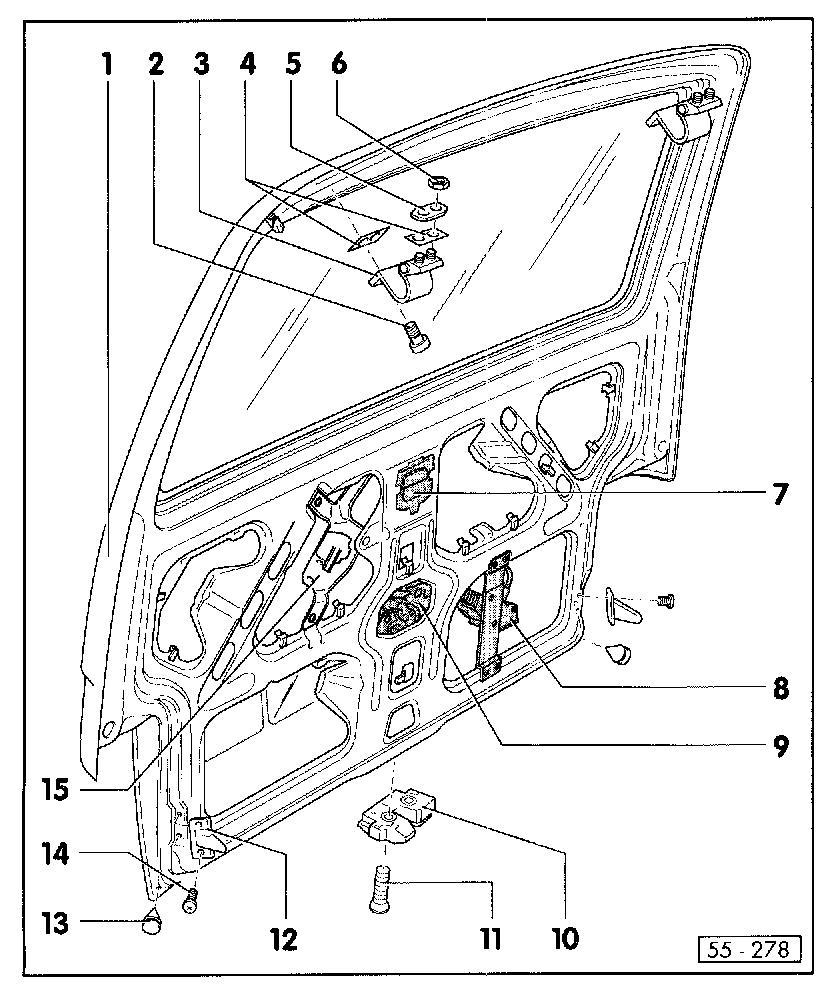

Trunk / Liftgate
1 - Tailgate
2 - Phillips screw
- 19 Nm (14 ft lb)
3 - Hinge
4 - Sealing Plate
5 - Spacer plate
- During removal of hinge -3-, do not let spacer plate fall into headliner
6 - Hex nut
- 30 Nm (22 ft lb)
7 - Latch, with opening mechanism
8 - Decklid Central Locking System Motor -V53-
9 - Lock mechanism
- Removing See 'Body And Frame, Locks.' Door Lock Cylinder
- Lock cylinder, removing See 'Body And Frame, Locks.' Door Lock Cylinder
10 - Lock
11 - Screw
- 19 Nm (14 ft lb)
12 - Guide pin
- Note identification for left -L- and right -R-
- Adjusting See 'Adjustments.' Adjustments
13 - Plug
14 - Phillips screw
- 8.0 Nm (71 in. lb)
15 - Rear Window Wiper Motor -V12-
- Removing and installing:
See 'Wiper and Washer Systems, Wiper Motor.' Service and Repair
