Vehicle Group 4

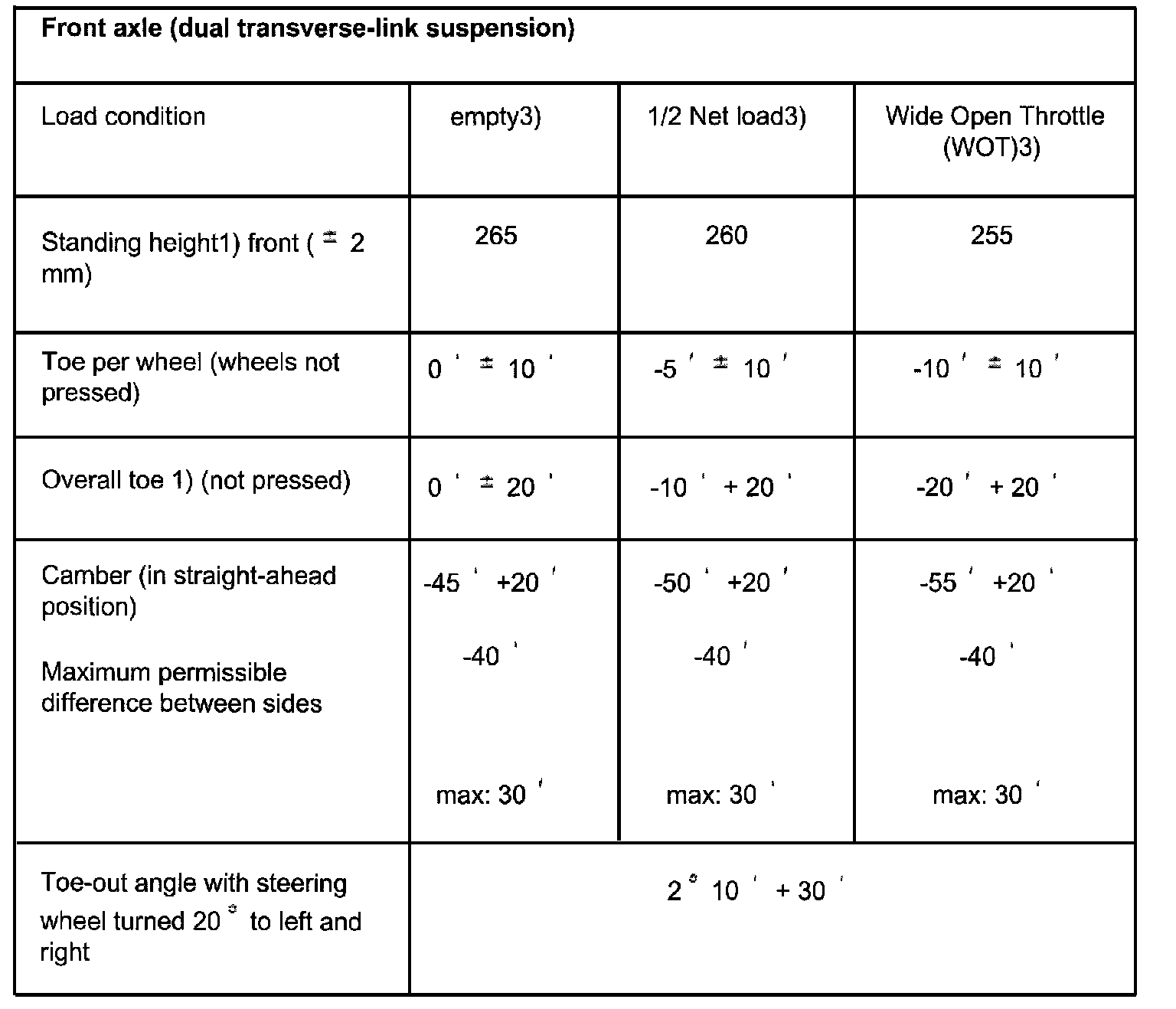

Front Suspension 1)
If vehicle height (ride height) has to be adjusted, the front axle alignment should be checked in full. After adjusting the vehicle height, push vehicle forwards and backwards over approx. 2m, then re-check height.
2)

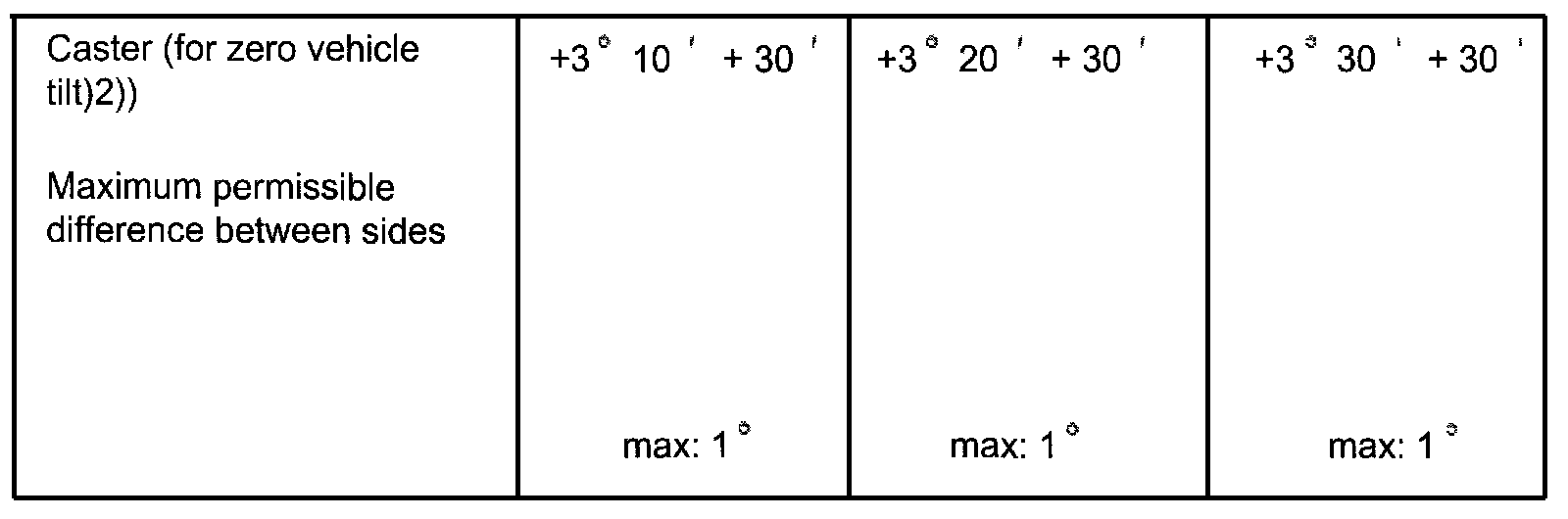

Measuring vehicle longitudinal inclination.
3)
Load state at time of vehicle alignment measurements

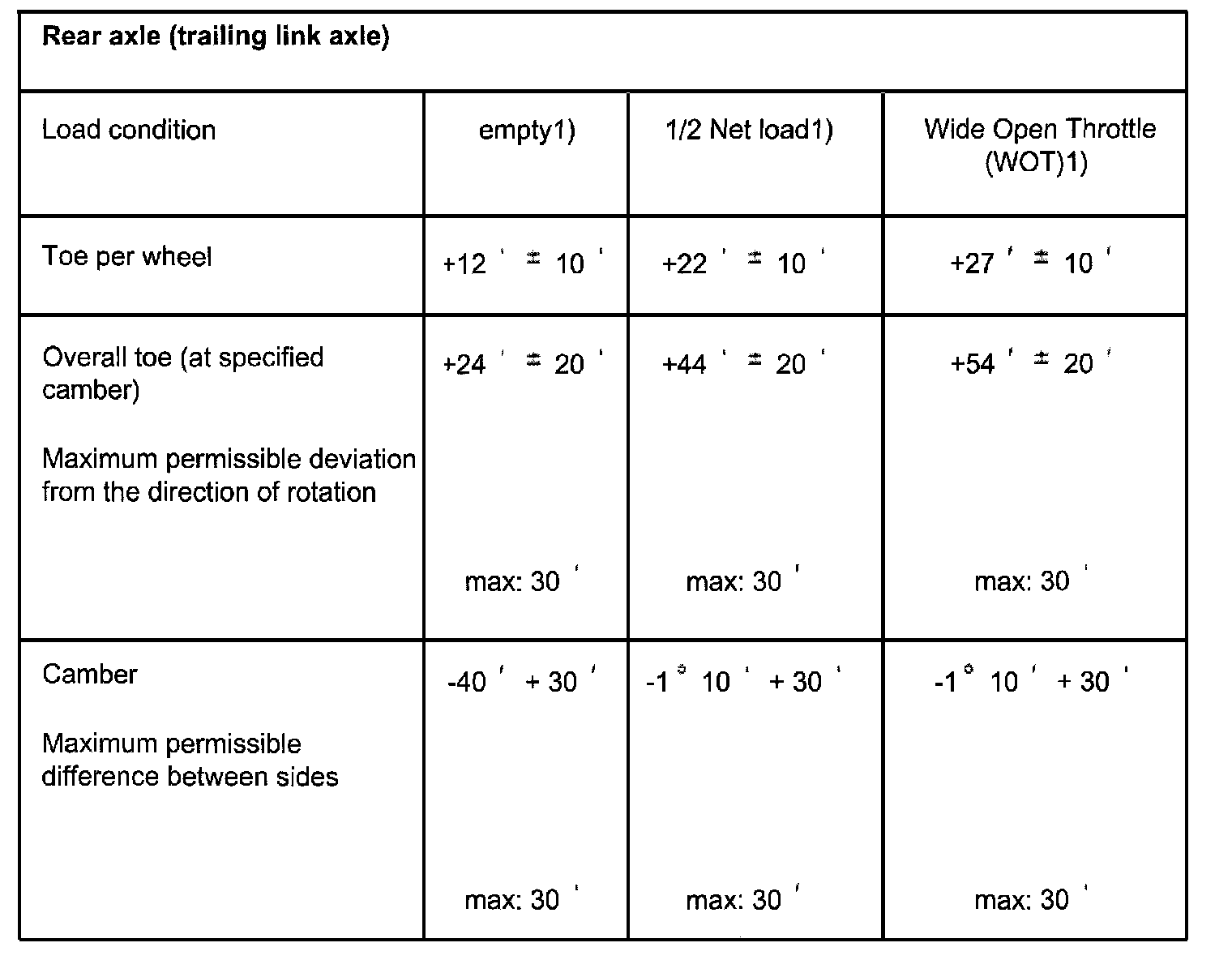

Rear Suspension 1)
Load state at time of vehicle alignment measurements
