Air Injection: Locations

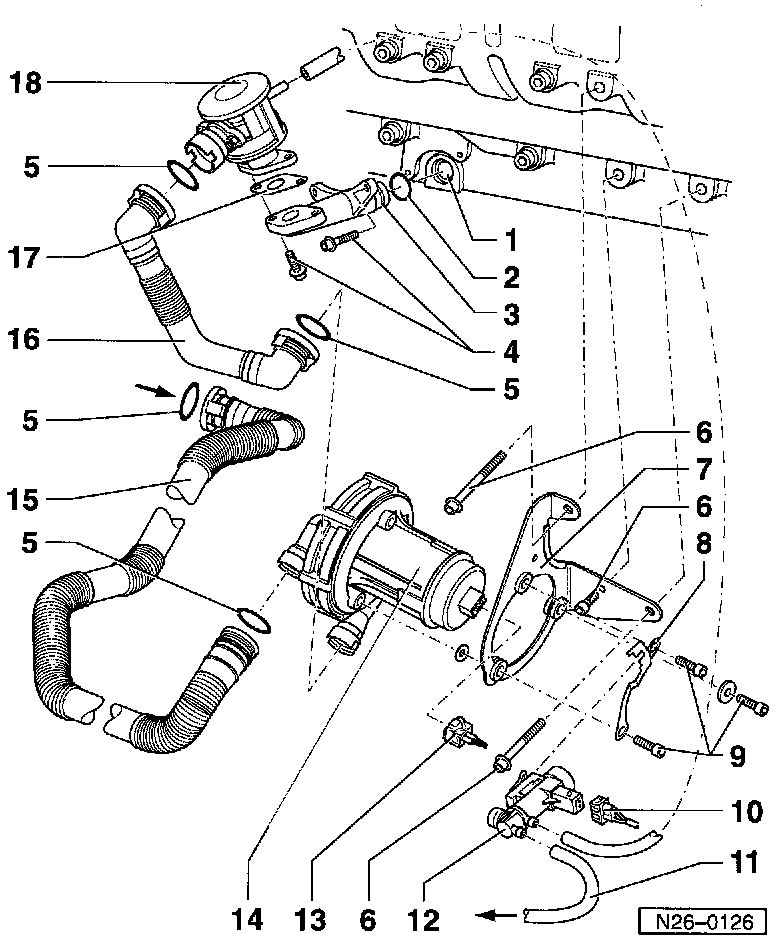

Air Induction Components,Application And Id.:

NOTES:
Components marked with an * are checked by
On Board Diagnostic.
Components marked with ** are checked via Output Diagnostic Test Mode (DTM).
Secondary Air Injection pump relay J299**

1 Air port in cylinder head.
2 0-ring
- Always replace.
3 Connection.
4 15 Nm (11 ft lb)
5 O-ring
- Replace if damaged.
6 25 Nm (18 ft lb).
7 Bracket:
- For Secondary Air Injection pump motor mounted to intake manifold.
8 Retainer
- For Secondary Air Injection solenoid valve.
9 10 Nm (7 ft lb)
10 2-pin harness connector
- Black
- For Secondary Air Injection solenoid valve.
11 Vacuum pipe:
- To junction piece between intake manifold and fuel pressure regulator.
12 Secondary Air injection solenoid valve N112 */.*
13 2-pin harness connector-black for Secondary Air Injection pump motor.
14 Secondary Air Injection pump motor (V101).**
15 Intake hose
- Ensure that it is tightly seated from Air Cleaner upper section.
16 Pressure hose:
- Ensure that it is tightly seated.
17 Gasket
- Always replace.
18 Combi-valve.

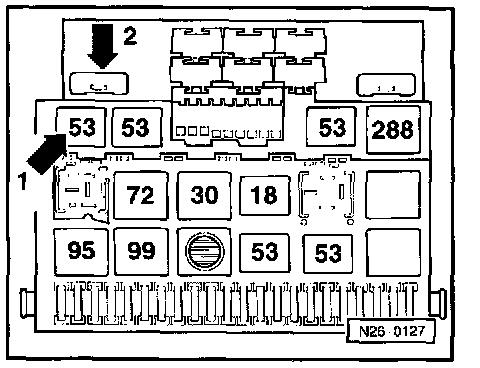

Air Injection Pump Relay And Fuse Locations.:

Fig. 1 Secondary Air injection pump relay J299 (arrow 1).
- With fuse S13O (arrow 2).

NOTE:
If tools are used to pull relays or control modules out of the fuse/relay panel, first disconnect battery ground cable.

CAUTION: Obtain radio anti-theft code before disconnecting the battery ground cable.
