Power and Ground Distribution: Locations

Eurovan - Standard Equipment, Only For Cars With Blue Illuminated Instrument Cluster, From September 1998.

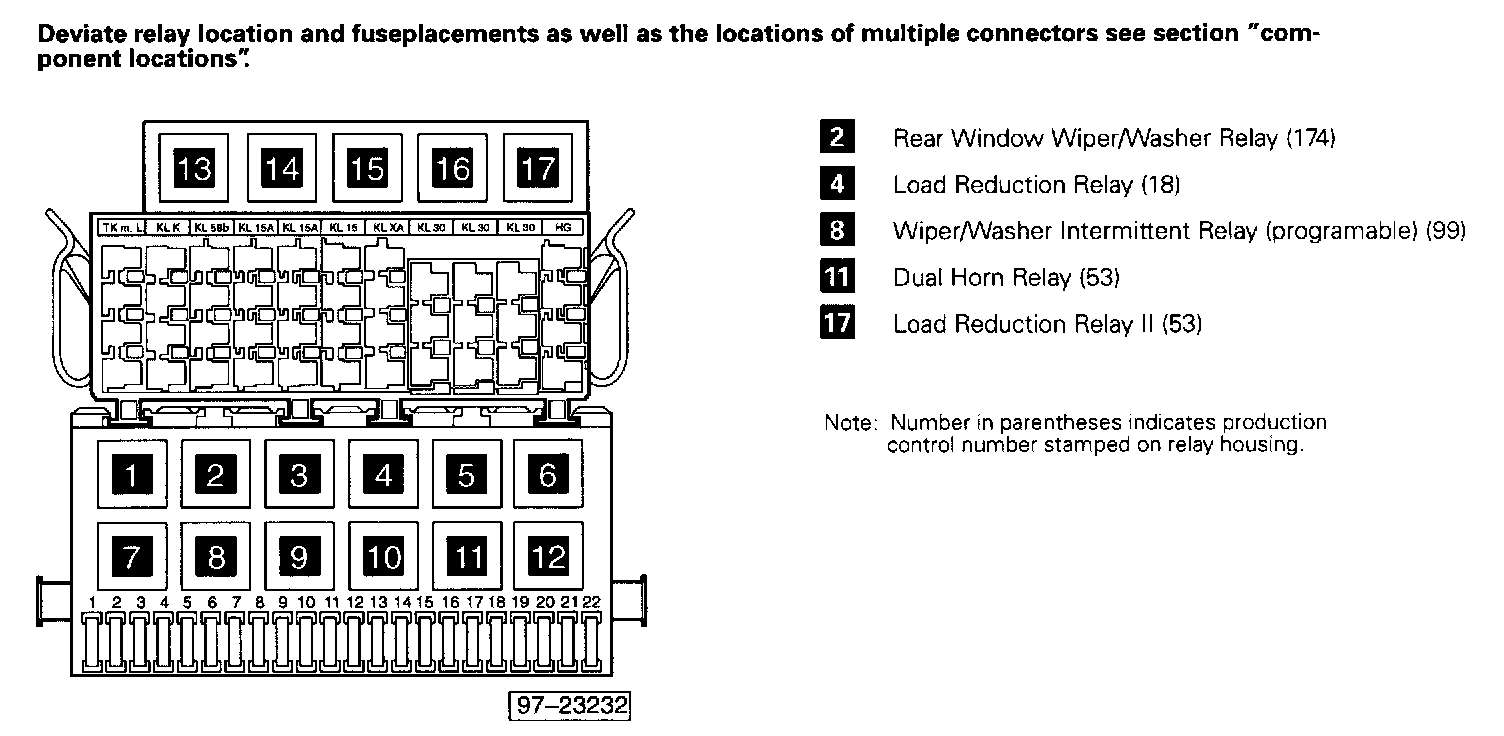

Relay Location:
