Headlamp

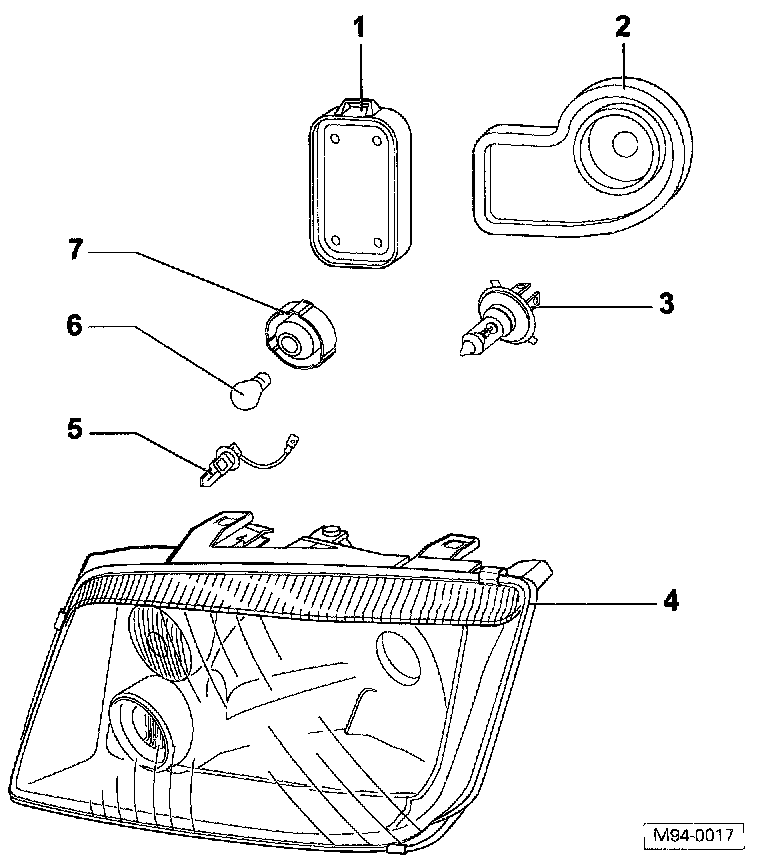

Headlights (Jetta), assembly overview 1- Sealing cap 2- Sealing cap 3- Two-wired bulb for high and low beam Bulb: H4, 12 V, 60 W/55 W
4- Headlight insert Adjusting headlight
Adjustments Removing and Installing
Service and Repair 5- Fog light bulb Bulb: H3, 12 V, 55 W
6- Turn signal bulb Bulb: 12 V 21W
7- Turn signal bulb holder
