Component Locations

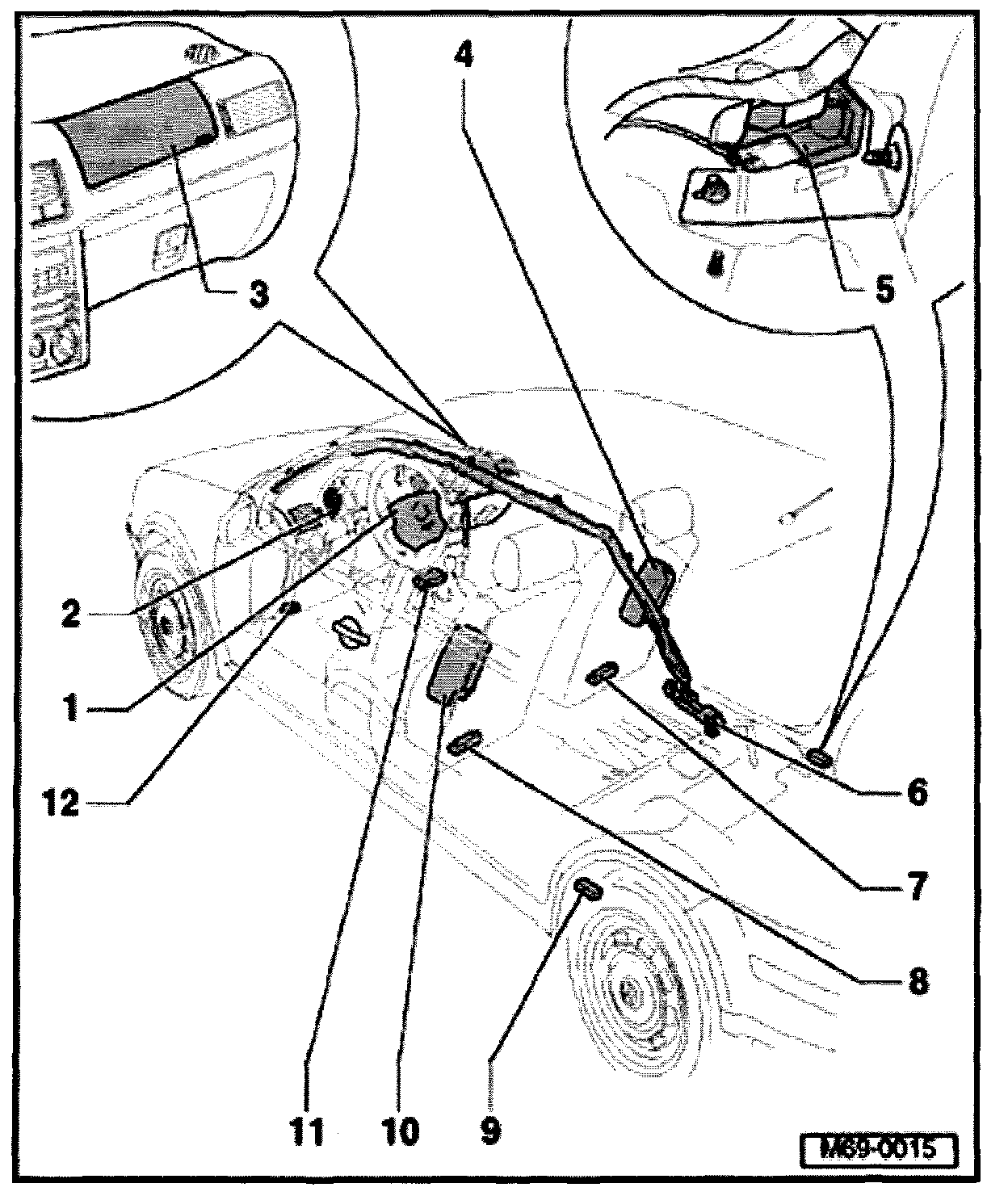

Airbag System Component Locations (Jetta)







1 - Airbag unit driver's side (with Airbag igniter, driver's side - N95)
2 - Airbag - Malfunction Indicator Lamp (MIL) - K75
3 - Airbag unit - passenger's side (with Airbag igniter 1, passenger's side -N131)
4 - Side airbag, - front passenger's side (with Side airbag igniter, passenger's side -N200)
5 - Rear side - airbag crash sensor, passenger's side
6 - Side curtain protection, driver's and passenger sides
7 - Side airbag - crash sensor, passenger's side - G180
8 - Side airbag crash sensor, driver's side - G179
9 - Rear side airbag crash sensor, driver's side
10 - Side airbag, front driver's side (with Side airbag igniter, driver's side - N199)
11 - Airbag Control Module - J234
12 - Data Link Connector (DLC)
