Rear Axle Toe

Rear wheel toe (all-wheel-drive), adjusting

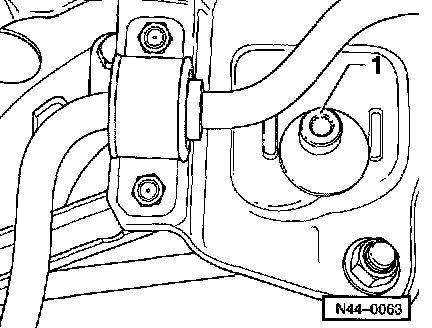

- Loosen nut for eccentric bolt -1-.
- Set toe by turning eccentric bolt -1-.
- Tighten nut.
- Reheck toe setting, correct if necessary.
Refer to Specifications.
