Batteries For Key (Non-Folding) With Radio-Frequency Remote Control, Removing and Installing
Batteries For Key (Non-folding) With Radio-frequency Remote Control, Removing And Installing

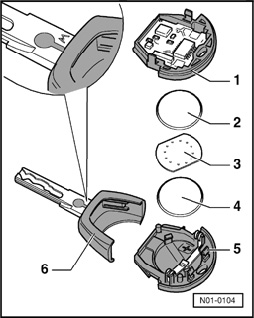

1. Transmitter unit - upper part (turned-over)
2. Battery
3. Contact plate
4. Battery
5. Transmitter unit - lower part
6. Key with variable code transponder
In order to distinguish keys with transponder and variable code transponder, key is identified by an engraved "w".
Removing
- Insert screwdriver in slot between radio-frequency unit - 1 - and key - 2 -.
- Rotate screwdriver in direction of - arrow - and remove transmitter unit from key.
- Pry apart transmitter unit at both catches - arrows -.
- Use a screwdriver to unclip upper battery - 1 - out of holders - 2 - in direction of - arrow -.
- Contact plate - 1 - has two straight edges. Contact plate can be removed when se edges are turned in direction of catches.
- Contact plate can also be unclipped using a screwdriver.
- Now unclip lower battery from holder using a screwdriver.
Installing
- Note polarity and installation position of batteries when installing.
- Place battery - 4 - in transmitter with positive terminal downward (positive terminal is marked in housing).
- Place contact plate - 3 - onto battery - 4 -.
- Place battery - 2 - onto contact plate with positive terminal downward and lock.
- Connect transmitter - 1 - to transmitter - 5 - and clip.
- Clip transmitter unit to main key.
