Steering Column: Testing and Inspection

Steering column, checking for damage
Visual check
- Inspect all parts of steering column for visible signs of damage.

Functional check
- Check that steering column turns easily without jerking.
- Check that steering column can be adjusted for height and reach.

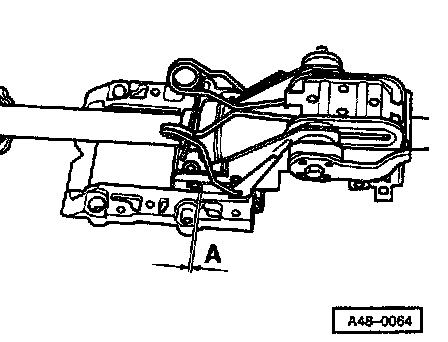

- Check gap, dimension -A-, between slide and bearing bracket.
Dimension A: Maximum 0.5 mm or smaller
- If dimension -A- is larger than 0.5 mm, the steering column is damaged and must be replaced.
