Display Groups 0 to 6 (Basic Functions)

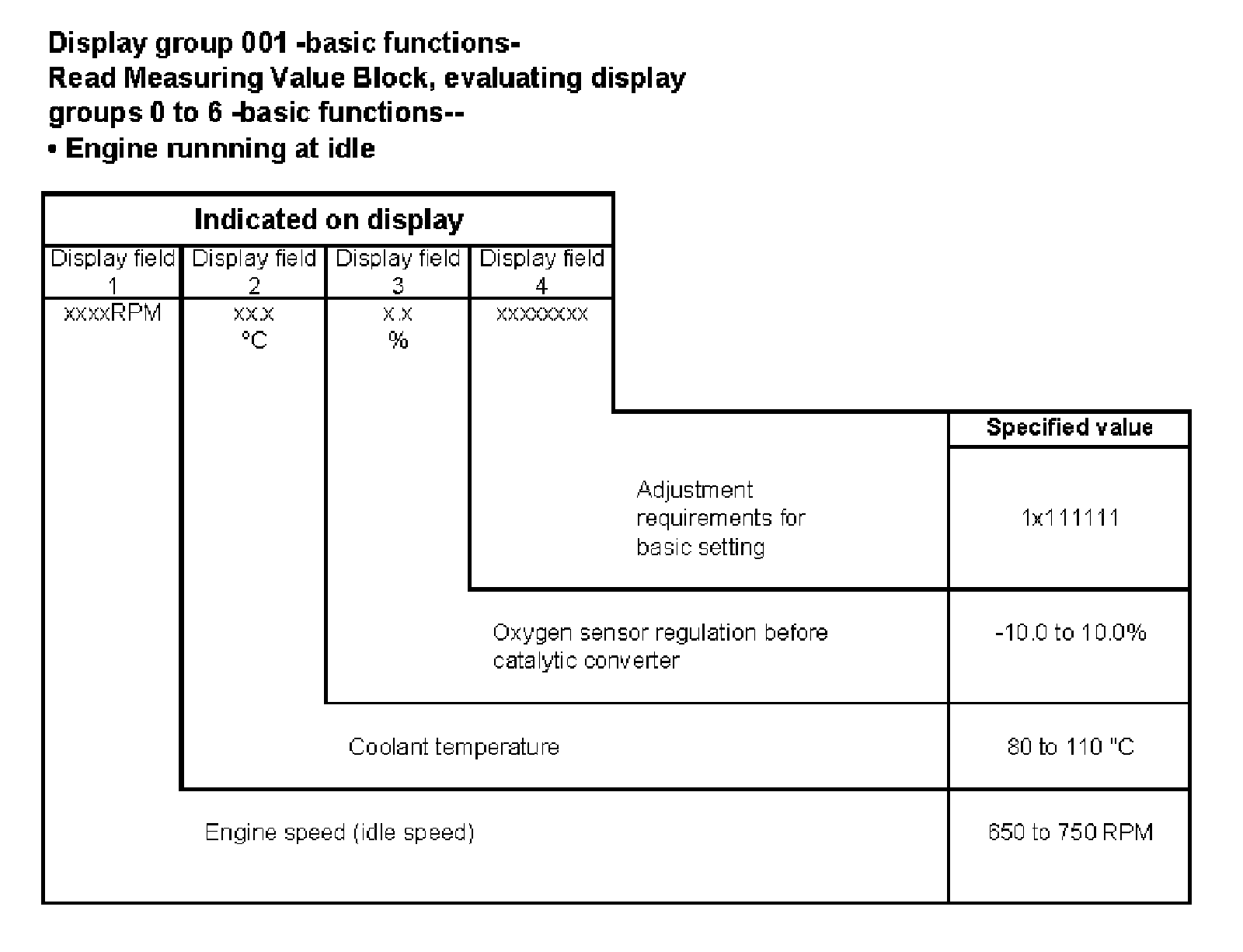

Display group 001 -basic functions-
Read Measuring Value Block 1:
Explanation of 8 digit numeric block

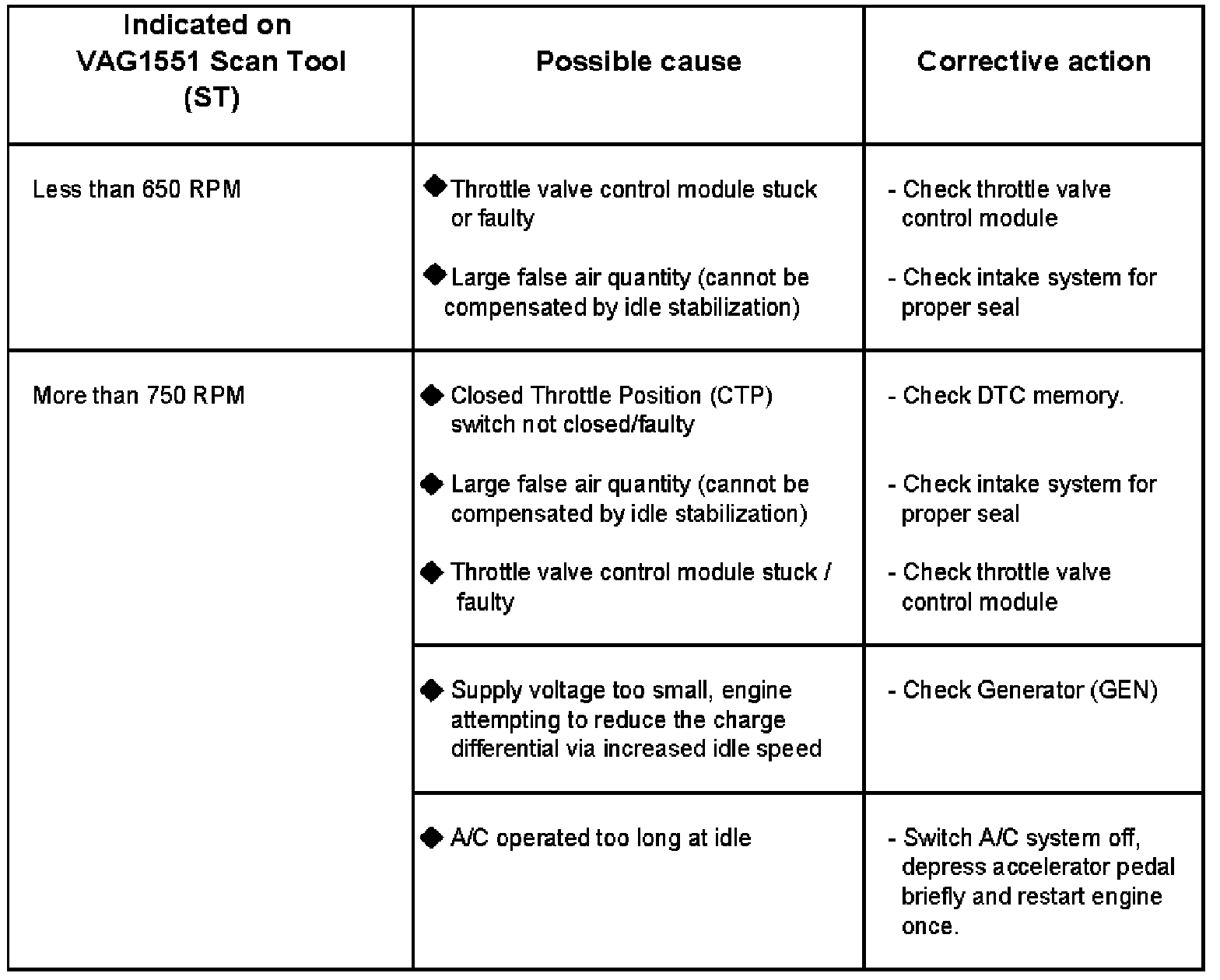

Evaluation display group 1, display field 1 - engine speed (idle speed)

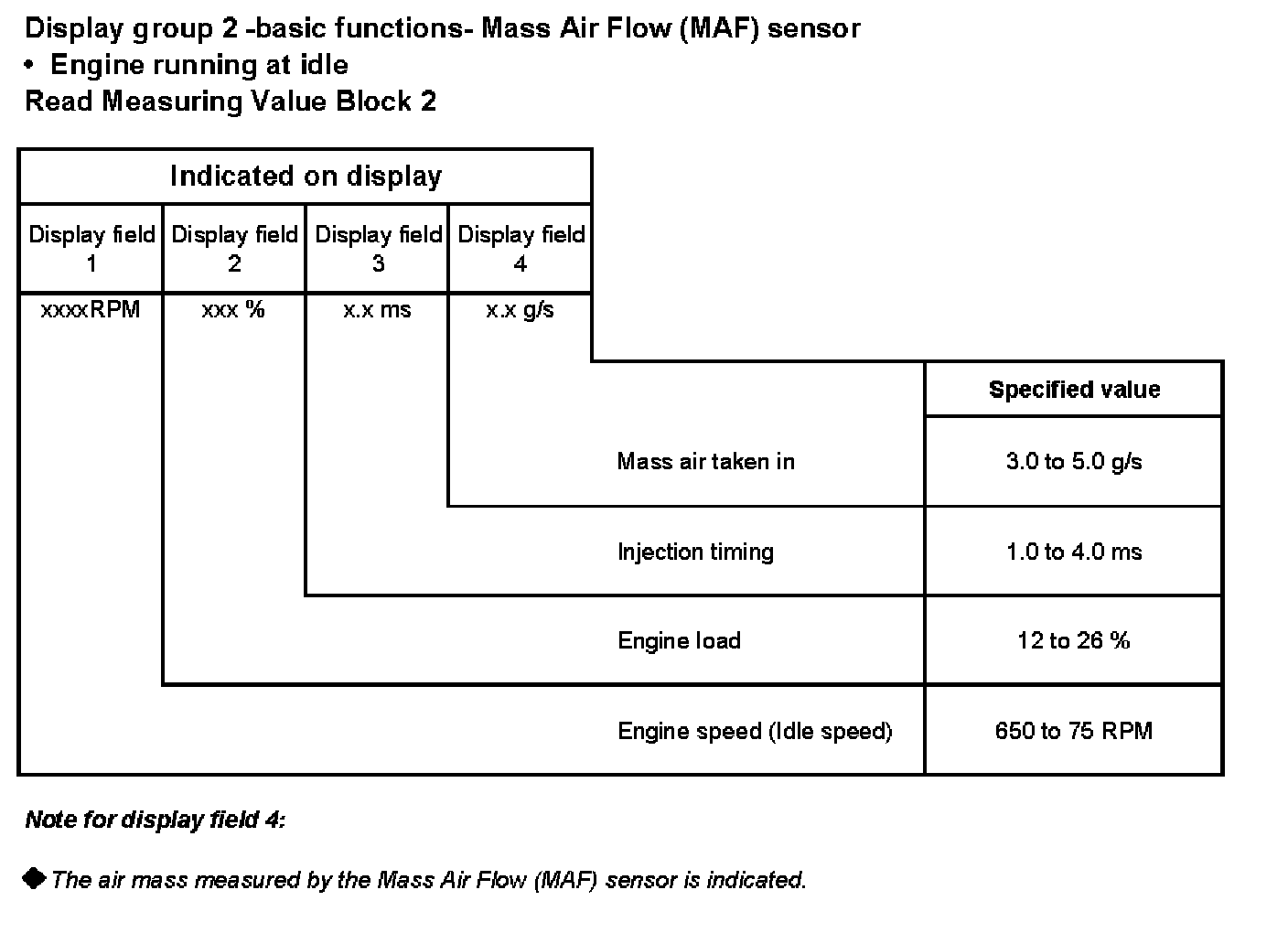

Display group 2 -basic functions-Mass Air Flow (MAF) Sensor
Read Measuring Value Block 2:

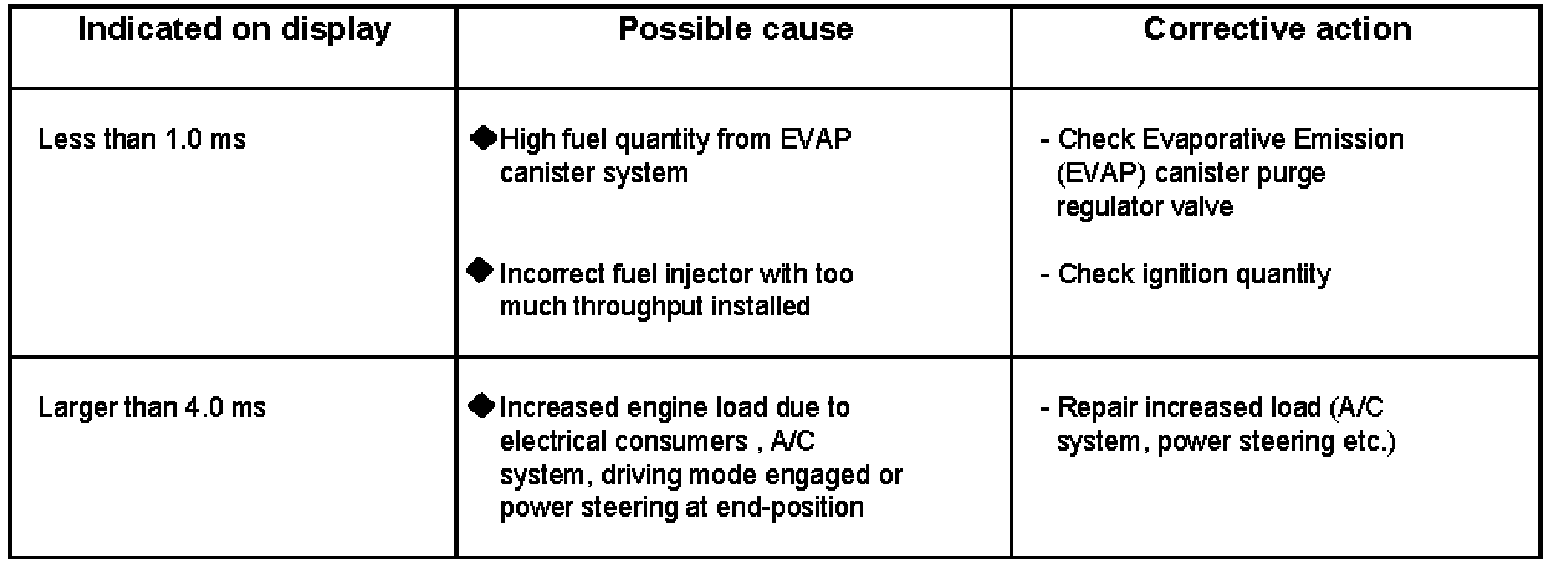

Evaluation display group 2, display field 3 - injection timing

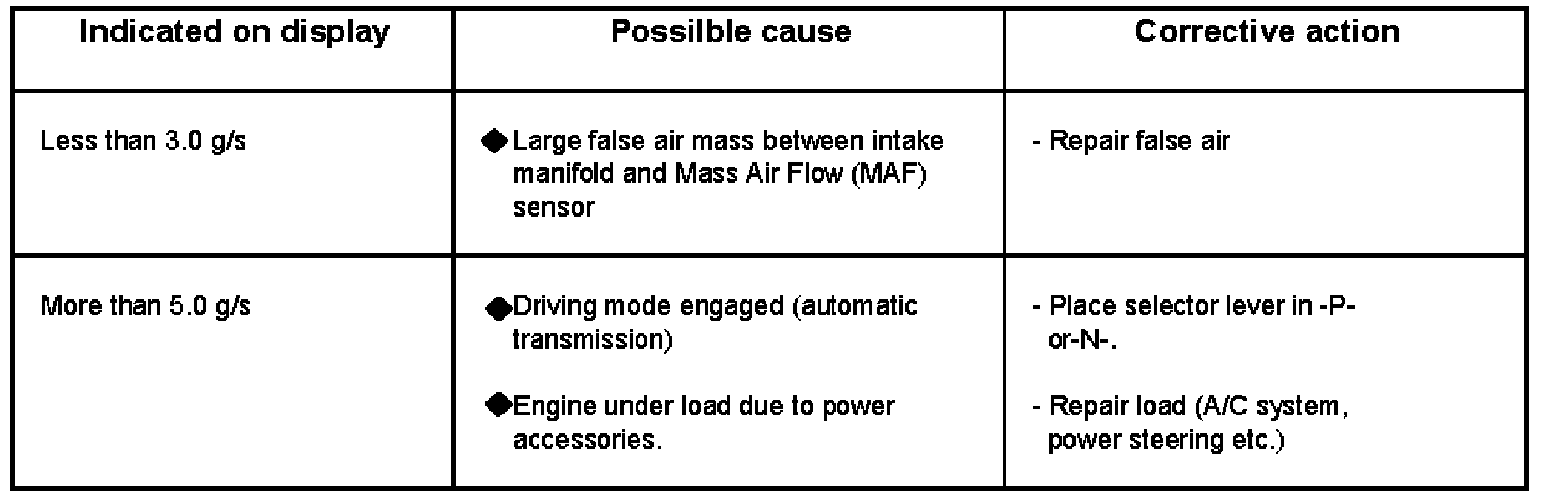

Evaluation display group 2, display field 4 - mass air taken in

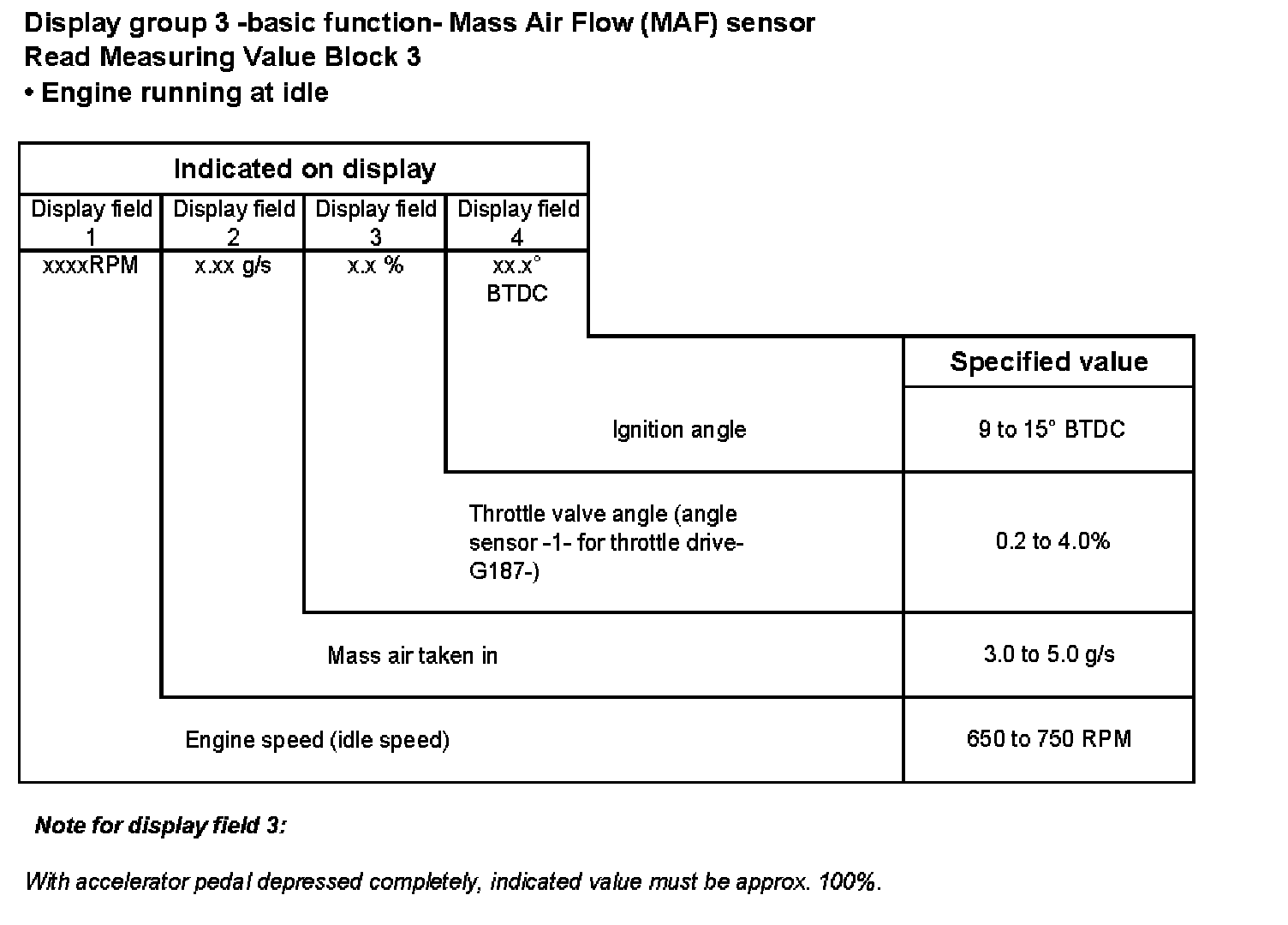

Display group 3 -basic function-Mass Air Flow (MAF) Sensor
Read Measuring Value Block 3:

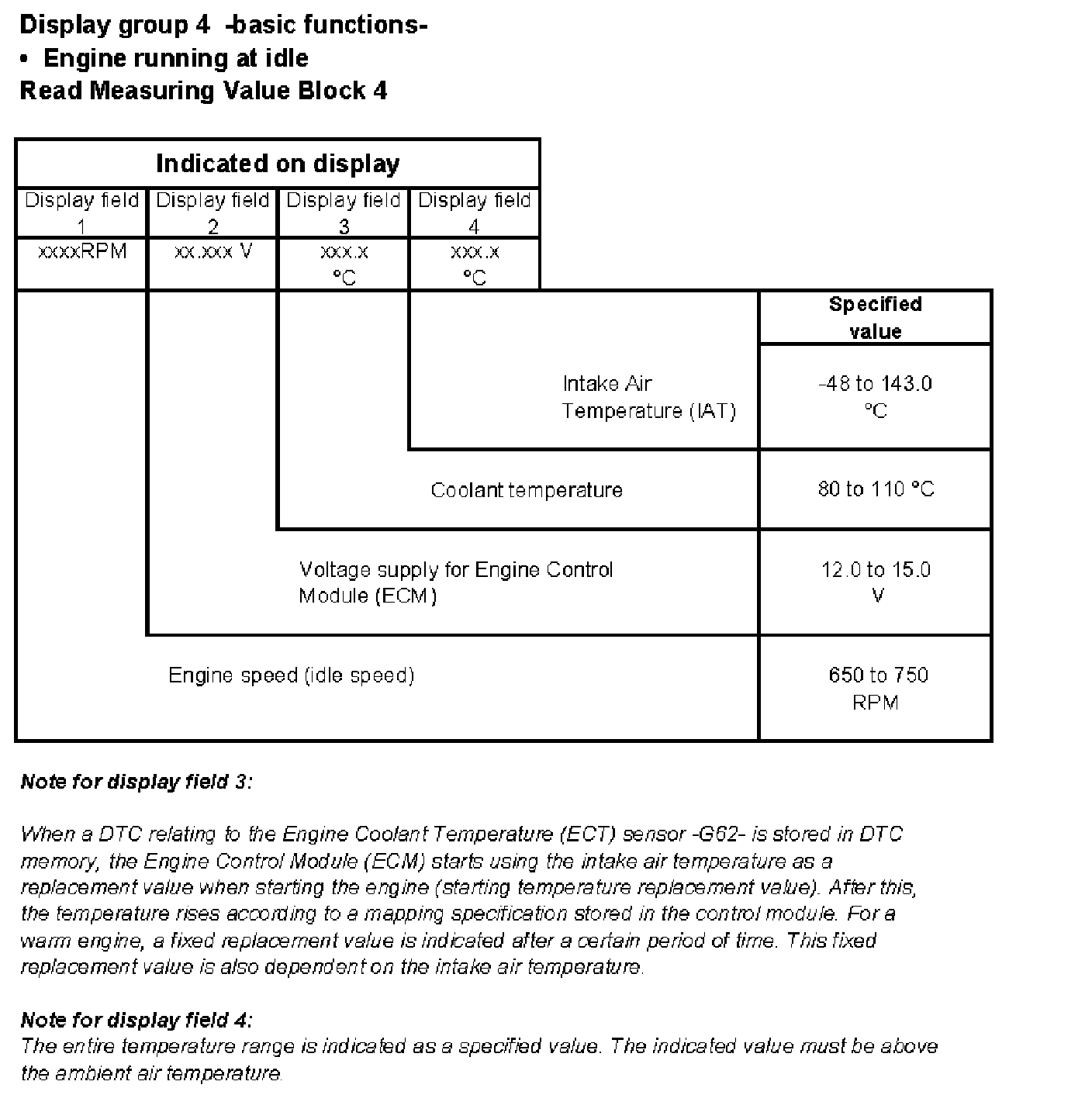

Display group 4 -basic functions
Read Measuring Value Block 4:

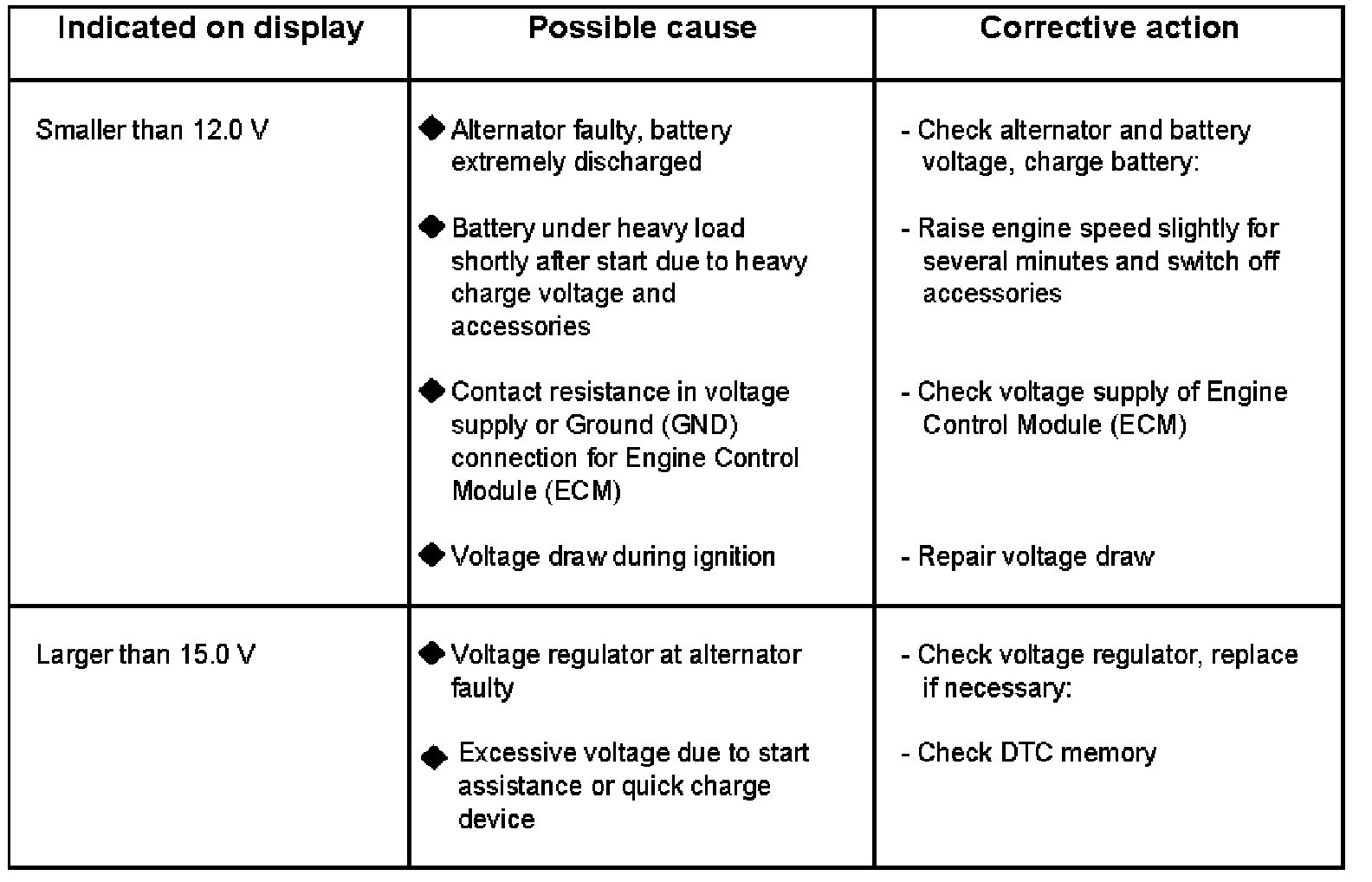

Evaluation display group 4, display field 2 - control module voltage supply

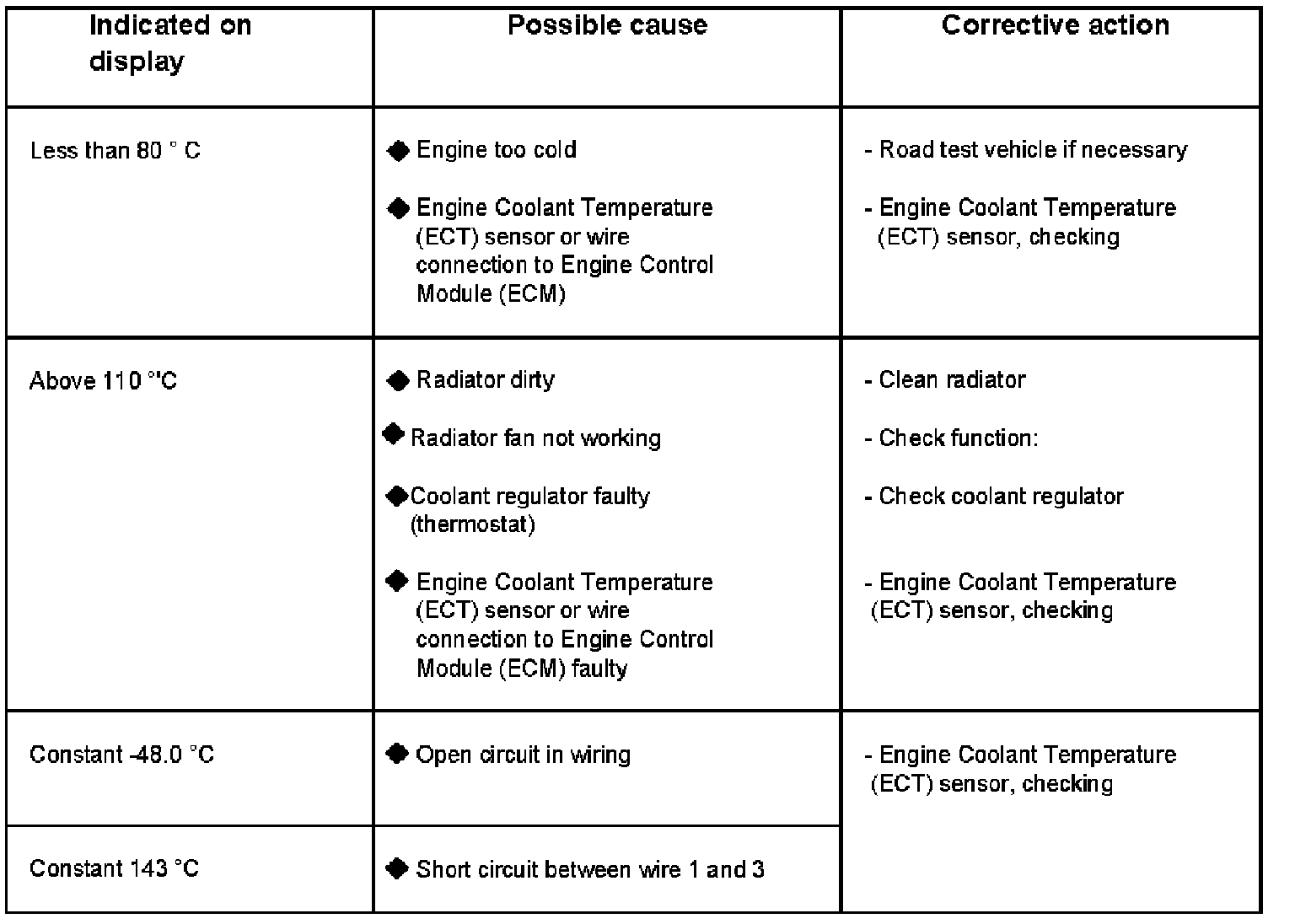

Evaluation display group 4, display field 3 - coolant temperature

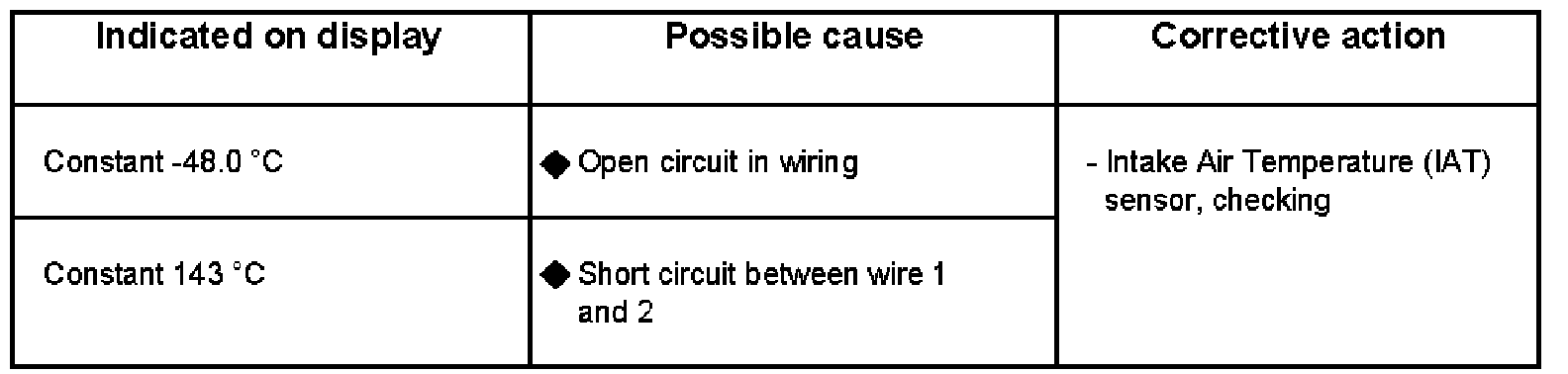

Evaluation display group 4, display field 4 - Intake Air temperature

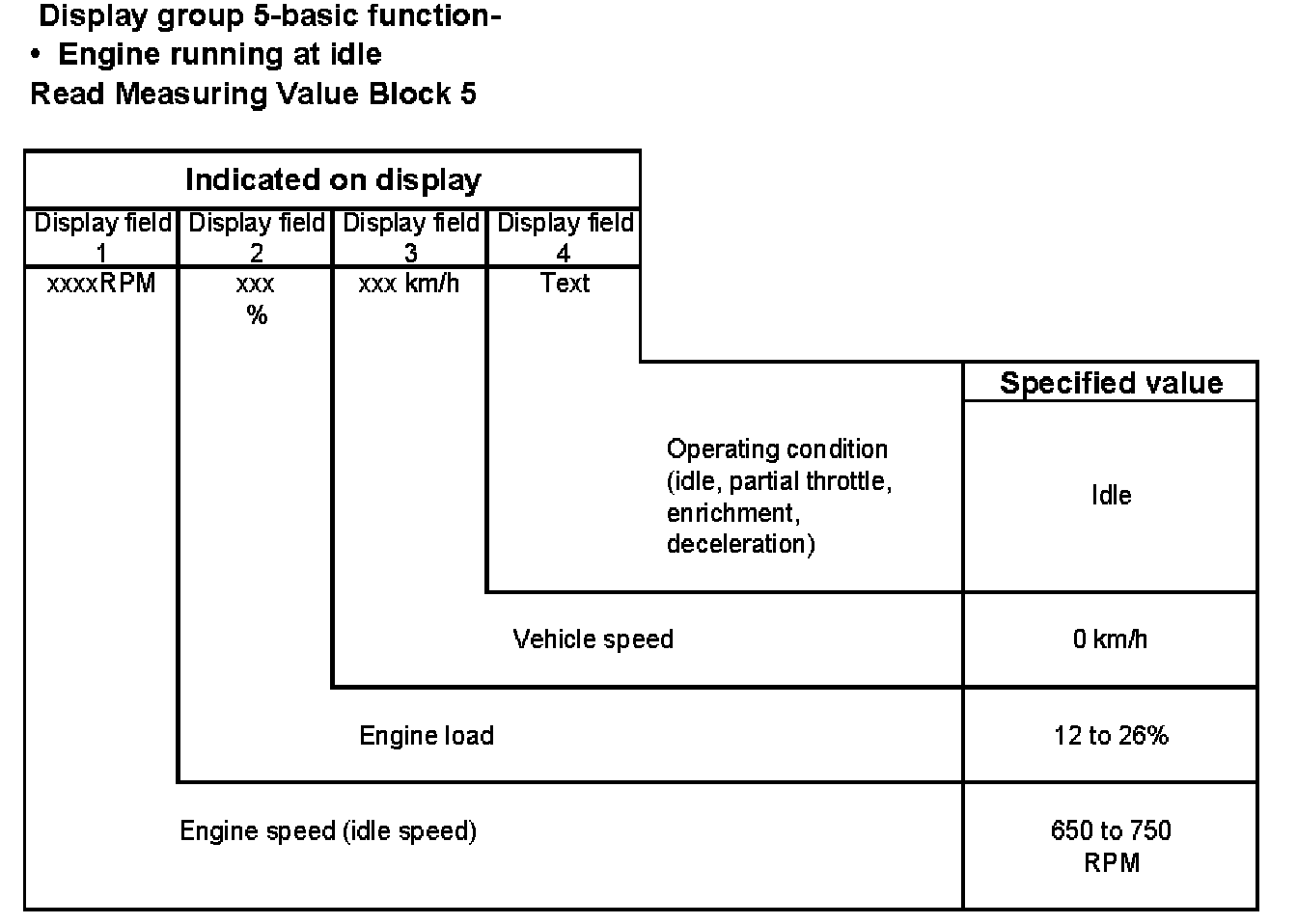

Display group 5 -basic function-
Read Measuring Value Block 5:

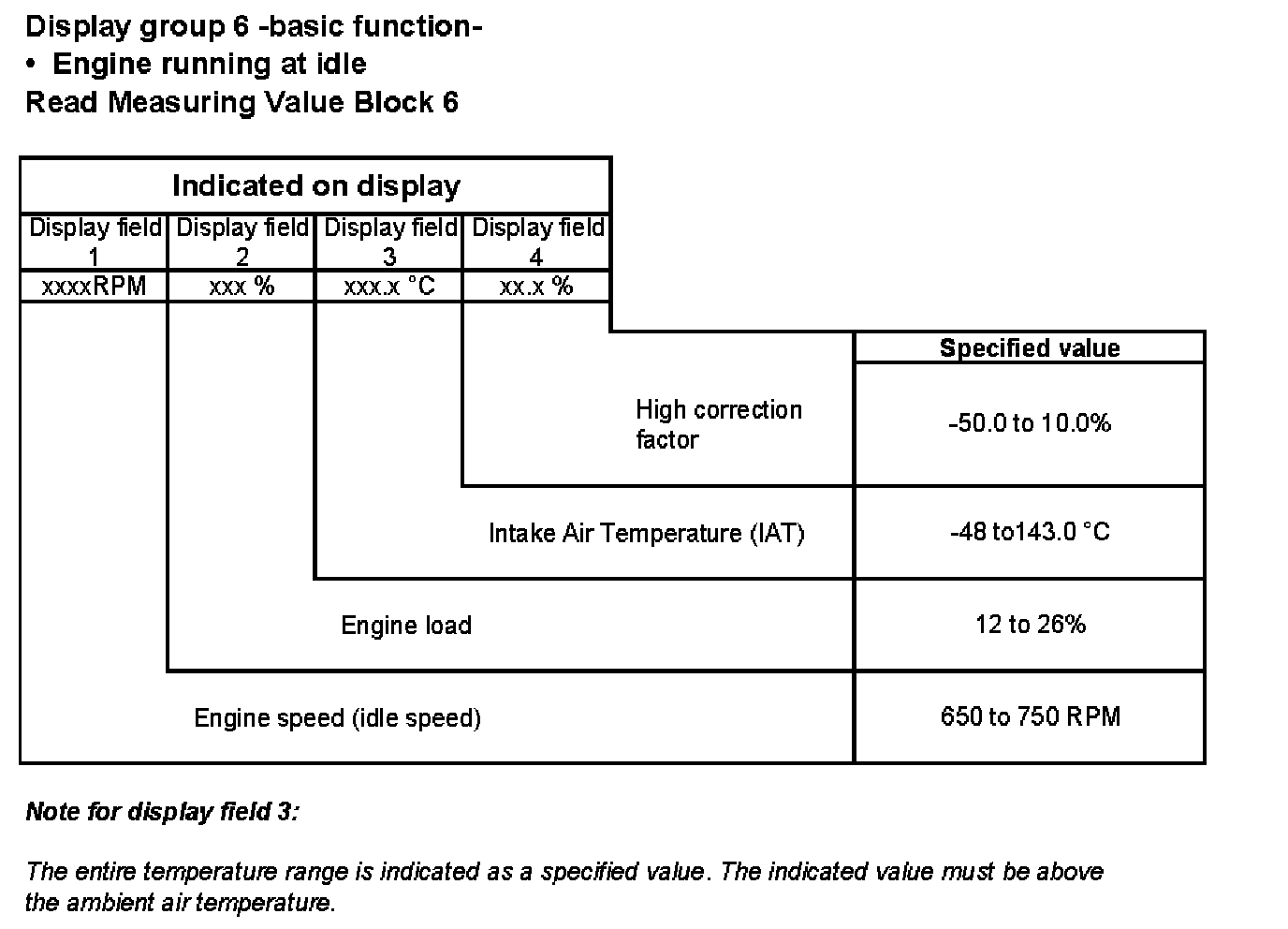

Display group 6 -basic function-
Read Measuring Value Block 6:
