Valve, Intake/Exhaust

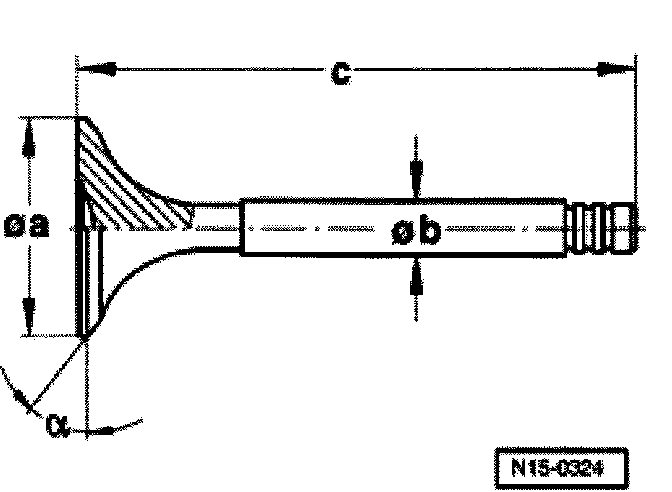

Valve Dimensions






Valve Measurements For Intake Valves

Dimension Short Intake Valve Long Intake Valve

0 a mm 31.00 31.00

0 b mm 5.96 5.96

c mm 102.20 136.10

a < ° 45 45

Valve Measurements For Exhaust Valves

Dimension Short Exhaust Valve Long Exhaust Valve

0 a mm 27.00 27.00

0 b mm 5.94 5.94

c mm 102.50 136.40

a < ° 45 45

Valve Timing At 1 mm Valve Lift

Intake Valve Exhaust Valve

Opens Before TDC --- 211.5 °

Closes Before TDC --- 6.5 °

Opens After TDC 18.50 ° ---

Closes After TDC 223.5 ° ---
