"Premium VI" & Premium VI - Monsoon", Removing and Installing

Radio, removing and installing

Notes: If radio is exchanged or replaced:
Anti-theft security code for new radio must be entered before use. Be sure to advise customer of new security code.
Confirm radio coding for sound system functions using On Board Diagnostic program function 07: "Code Control Module".
Radio sound system coding must be performed to account for presence of CD Changer (if installed) and interior sound field differences between models (where applicable).

Special tools, testers, and auxiliary items needed

- Recommended: Radio removal tool JC4225

or




- Radio removal tool T10057 (two identical pieces).

NOTE: Individual tools are marked "Top L" for and both left upper and lower openings and "Top R" for both right upper and lower openings.

Removing

CAUTION: Before beginning repairs on the electrical system:
Obtain the anti-theft radio security code.
Switch off all electrical consumers.
Switch ignition off and remove ignition key.

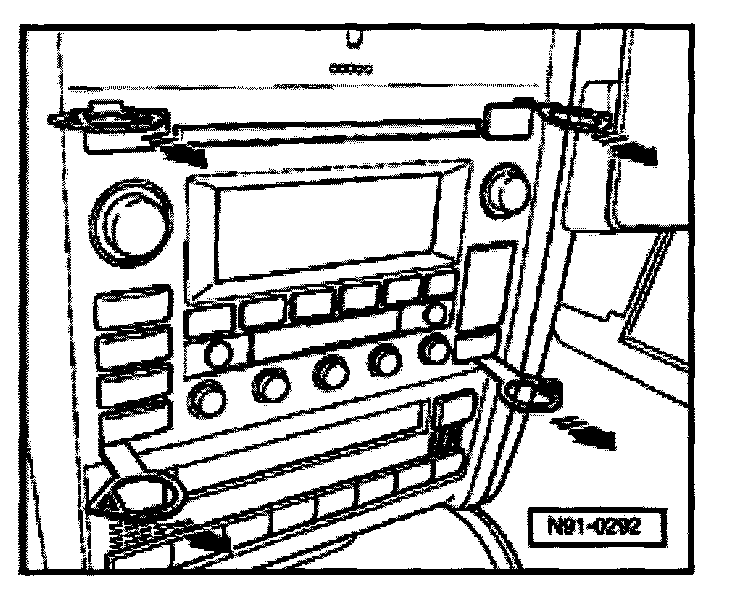

- Insert tool T10057 into openings on face of radio -arrows- until they are felt to engage.

NOTE: Use of separate tools T10057 is illustrated here. Procedure is essentially the same for tool JC4225 where all release prongs are integrated into a frame.

- Pull radio from instrument panel opening using handles on tools T10057 or frame of tool JC4225.
- Disconnect electrical connections and antenna cable connection.

Note: Radio must be pulled straight out from opening. Do not twist or tilt tools while removing.






- To remove tool from radio, release locking tabs -arrow- on side of radio when removed.

Installing

- Reconnect electrical connectors and antenna cable at rear of radio.
- Insert radio into instrument panel opening and push straight in until locking tabs engage.

CAUTION! When installing radio unit, do not press on display or control buttons in order to engage locking tabs. Damage will result.

- Input anti-theft security code.
- Confirm radio coding for sound system functions using On Board Diagnostic program: "Code control module", function 07.

NOTE: Radio sound system coding must be performed in order to account for presence of CD changer (if installed) and interior sound field differences between models.
