Bonded Rubber Bushing For Control Arm, Replacing

Fig. 1 Front control arm bushing, pressing out





Fig. 2 Front control arm bushing, pressing in

NOTE:
^ To aid pressing in use oil G 294 421 A1 Never use grease!

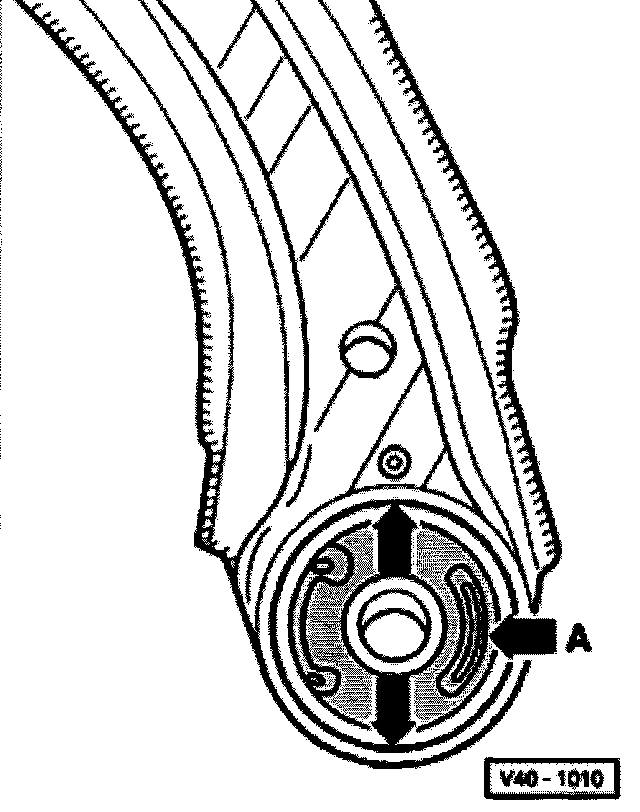

Fig. 3 Rear control arm mount, installation position
One of embossed arrows points toward projection (arrow A) on control arm.





Fig. 4 Rear control arm bushing, pressing out in
