With Manufacturer's Scan Tool

Readiness Code, Reading

Special tools and equipment
- V.A.G1551 scan tool (or V.A.G1552 mobile scan tool) with V.A.G1551/3B cable

Work sequence
- Connect the V.A.G1551 scan tool (V.A.G1552). Then switch ignition on and select engine control module with the "Address word" 01.(Connecting scan tool and selecting engine control module. [1][2][3]Connecting VAG 1551 Scan Tool)

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press keys 1 and 5 for the "Readiness code" function and confirm entry with Q key.

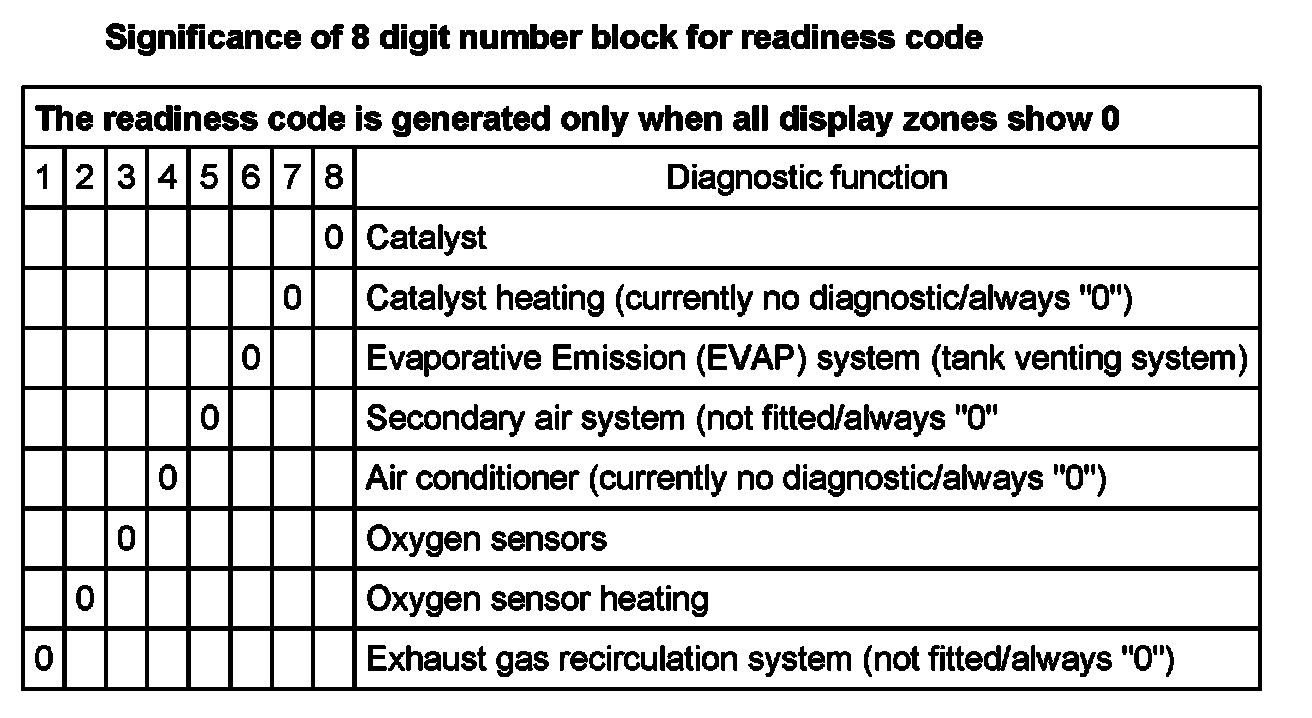

Must appear on display when all diagnostic functions have been successfully completed:

Indicated on display:

Readiness code
00000000 - Test complete

- Press -> key.
- Press keys 0 and 6 for "End data transfer" function and confirm input with Q key.

Indicated on display:

Readiness code
00101101 - Test not complete

One of the diagnostic checks has not run through successfully:
- Press -> key.
- Generate readiness code. Readiness Code Generating (VW Drive Cycle)
