Rear Axle, Removing and Installing

Special tools and equipment






- VAG1383A engine/transmission jack






- VAG1332 torque wrench

Removing

- Install brake pedal depressor and depress brake pedal.

Note: The mounting bracket should not be removed to remove the rear axle.

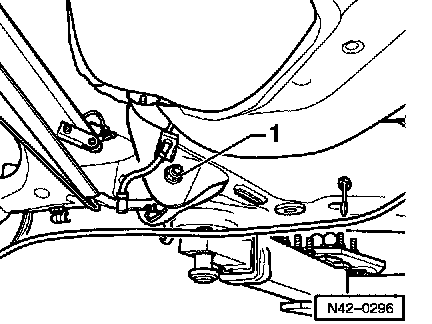

- Remove bolts -1- with vehicle standing on its wheels (raise vehicle until bolts are accessible).
- Loosen wheel bolts.
- Raise vehicle further (to relieve coil spring pressure).
- Remove wheels.






- Unclip parking brake cable from retainer on rear axle (arrow -A-) and unhook from retainers (arrows).
- Remove clips -1-.
- Place VAG1383A engine/transmission jack in position with rag under brake line.






- Disconnect brake line from rear axle.






- Counterhold on guide pins and remove mounting bolts from brake caliper.
- Remove brake caliper and hang upon body.

CAUTION:

- Suspend brake caliper using a piece of wire or similar
- Do not allow the caliper to hang by the brake hose. The unsupported weight can stretch and damage the hose.






- Disconnect harness connector -1- from ABS wheel speed sensor (where applicable).
- Unclip wheel speed sensor wiring from retainer (arrow).






- On vehicles without ABS, remove bolts -1- and -2- for brake pressure regulator.
- Place VAG1383A engine/transmission jack in position.






- Remove mounting bracket bolts -1- on rear axle from both sides and lower rear axle.

Installing

Installation is the reverse of removal.

After installing:

- Bleed brakes.
- Check position of steering wheel during test drive.

If steering wheel is not in straight ahead position:

- Check wheel alignment.

Fastener/location - Tightening torque

Shock absorber to body: 75 Nm (55 ft. lbs.)
Use new bolts!

Mounting bracket to rear axle: 80 Nm (59 ft. lbs.)
Use new nuts and bolts!
