Installation Unit, Removing and Installing

Installation Unit, Removing And Installing

Removing







- Removing automatic rotary switch for sunroof.
- Removing molded headliner.

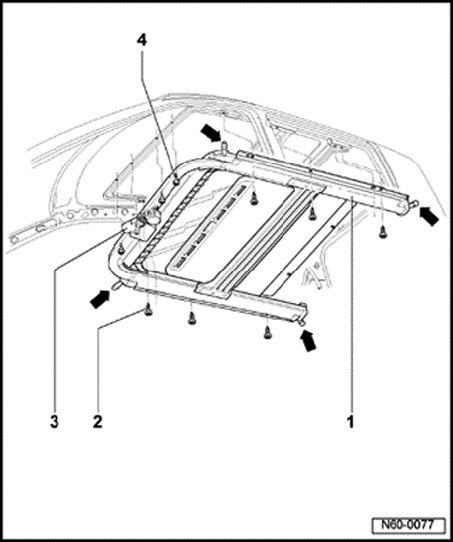

- Disconnect water drain hoses from installation unit - 1 - - arrows -.
- Remove bolts - 2 - and - 4 - (with sleeves) and remove installation unit from vehicle with a second mechanic.

Installing







- Insert installation unit - 1 - into roof cut out with a second mechanic.
- Align installation unit in roof frame with cylindrical pins (reversed drill) 12 mm at front right and 10 mm at rear left. Installation unit must not make contact with roof frame.
- Check and establish if necessary correct routing of wires and harness connectors for electrical consumers at roof.
- Secure (8 Nm) installation unit - 1 - of drive motor for sunroof - 3 - beginning at left and right toward rear.
- Install water drain hoses - arrows -.
- Connect harness connector for drive motor - 3 -.
