Backrest Shell, Removing and Installing

Backrest Shell, Removing And Installing

Removing
- Remove Recaro seat.
- Remove belt buckle.
- Remove trim, backrest mounting bracket.
- Remove spring cover.
- Remove side seat trim.
- Remove backrest.
- Remove side airbag.
- Remove cover and upholstery from backrest.

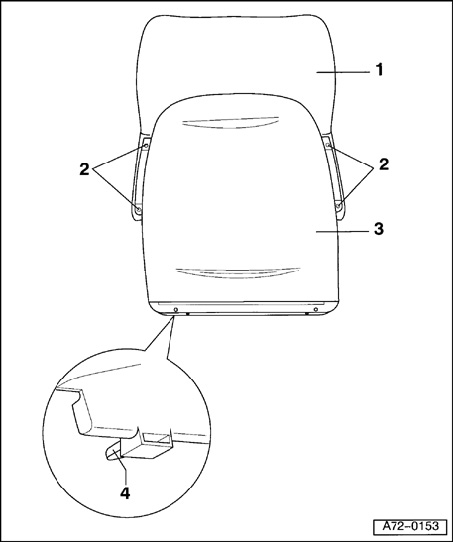

- Remove two bolts - 2 - right and left, respectively.
- Remove backrest shell - 3 - from backrest in area of two clips - 4 -.
- Pull backrest shell out of mounts in backrest - 1 -.

Installing
Installation is the reverse order of removal.
