Evaluating Display Group 005

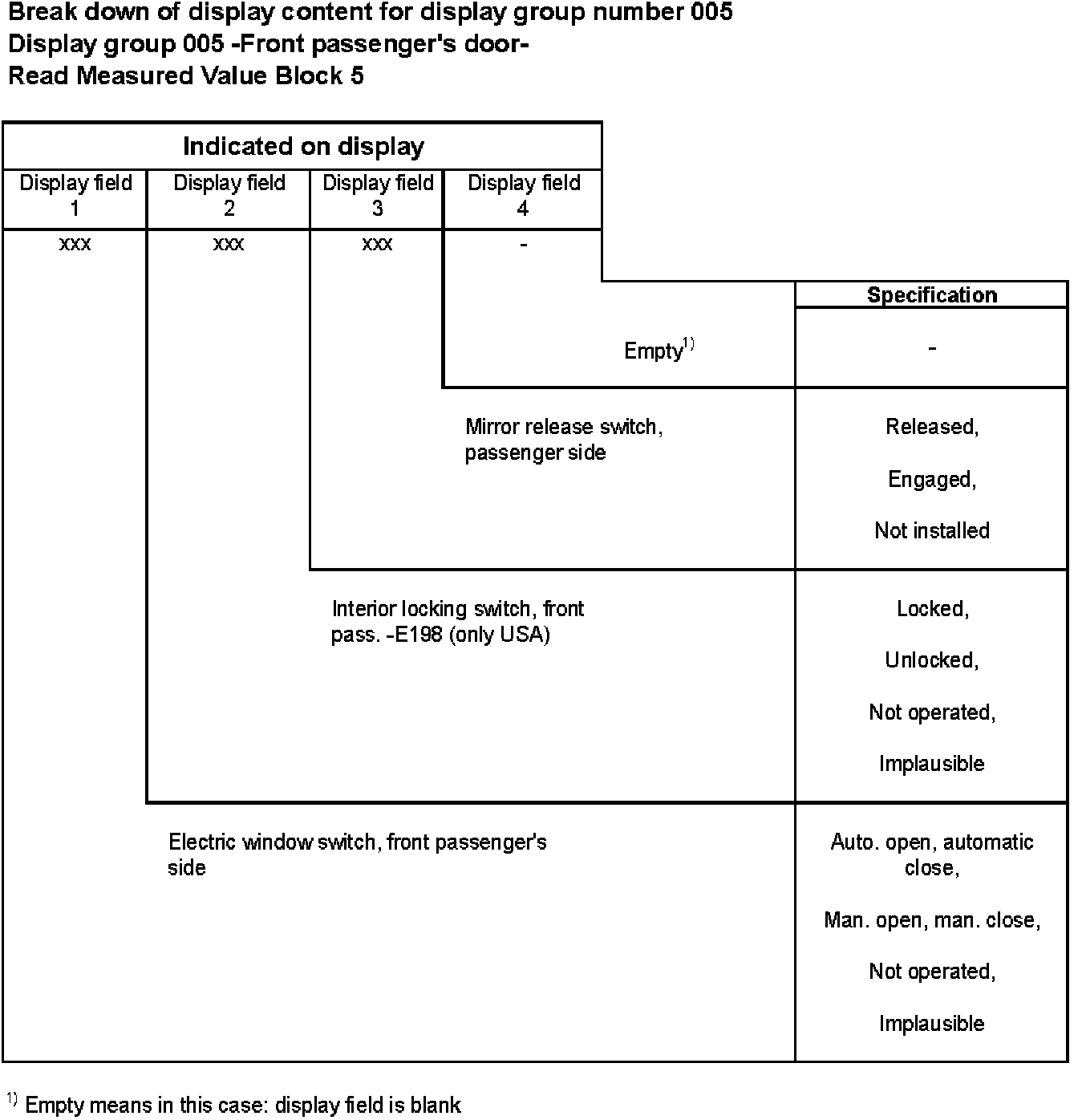

Break down of display content for display group number 005


Display Group 005:

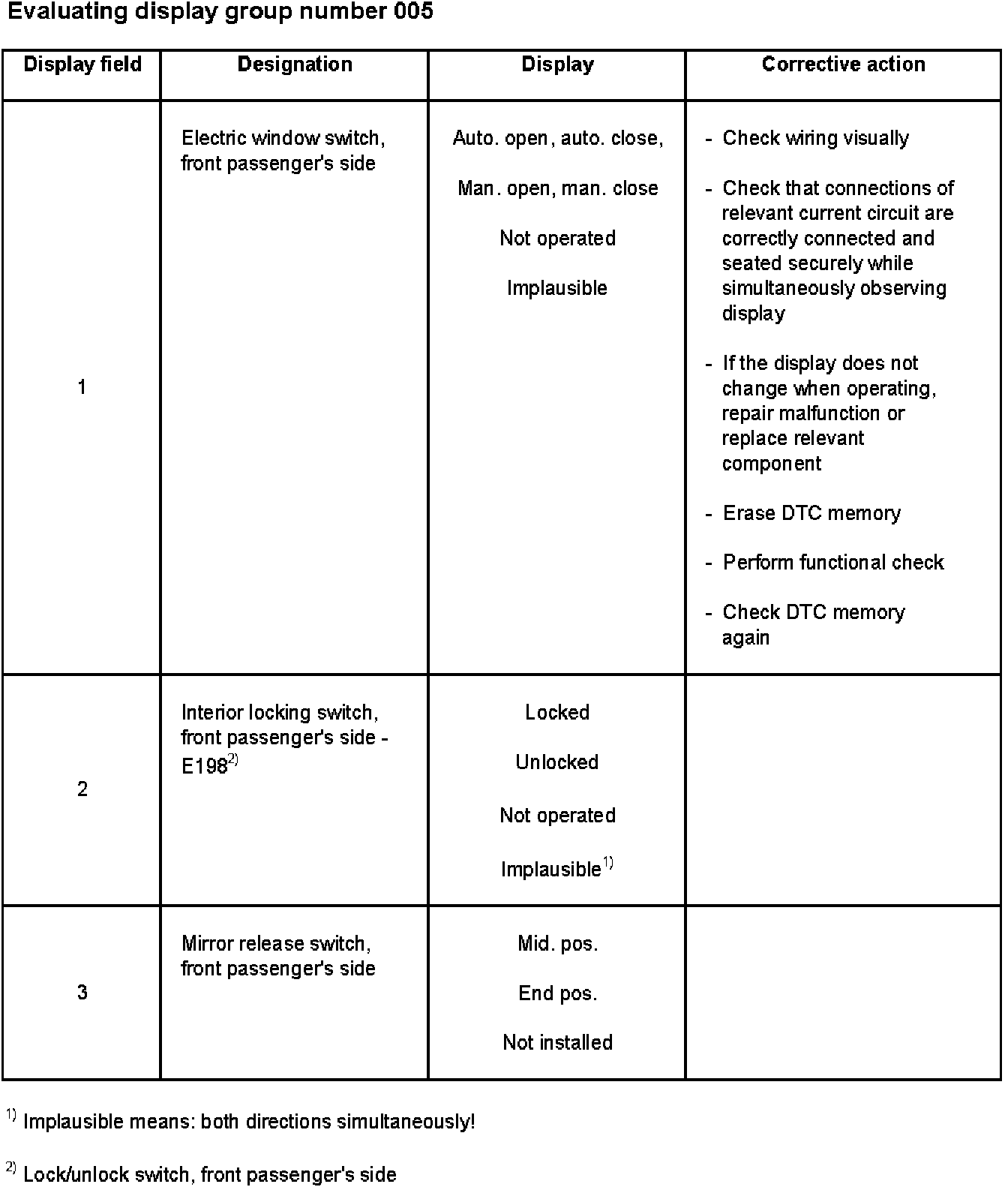

Evaluating display group number 005


Display Field 1 - 3:
