Multifunction Steering Wheel From May 2000

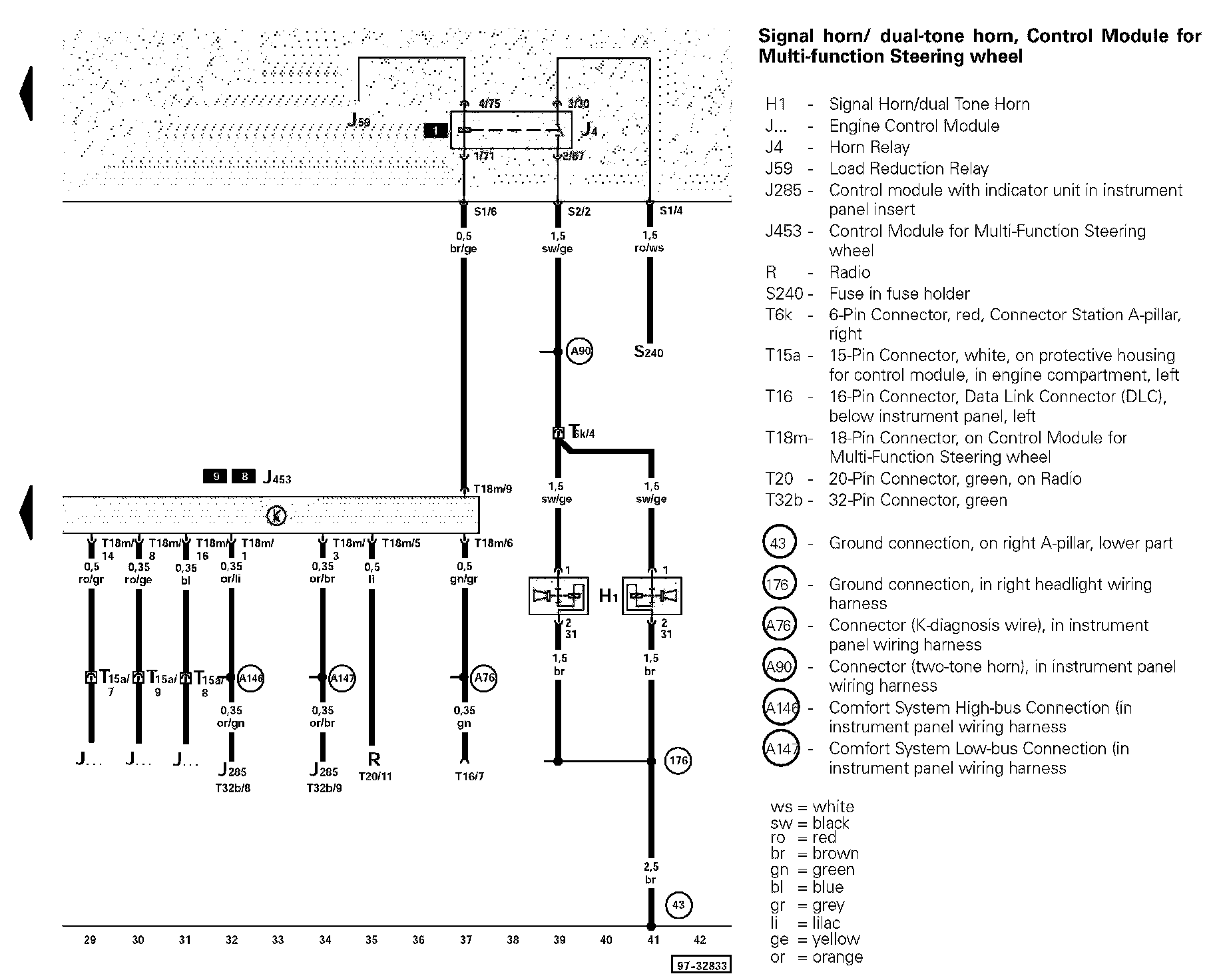

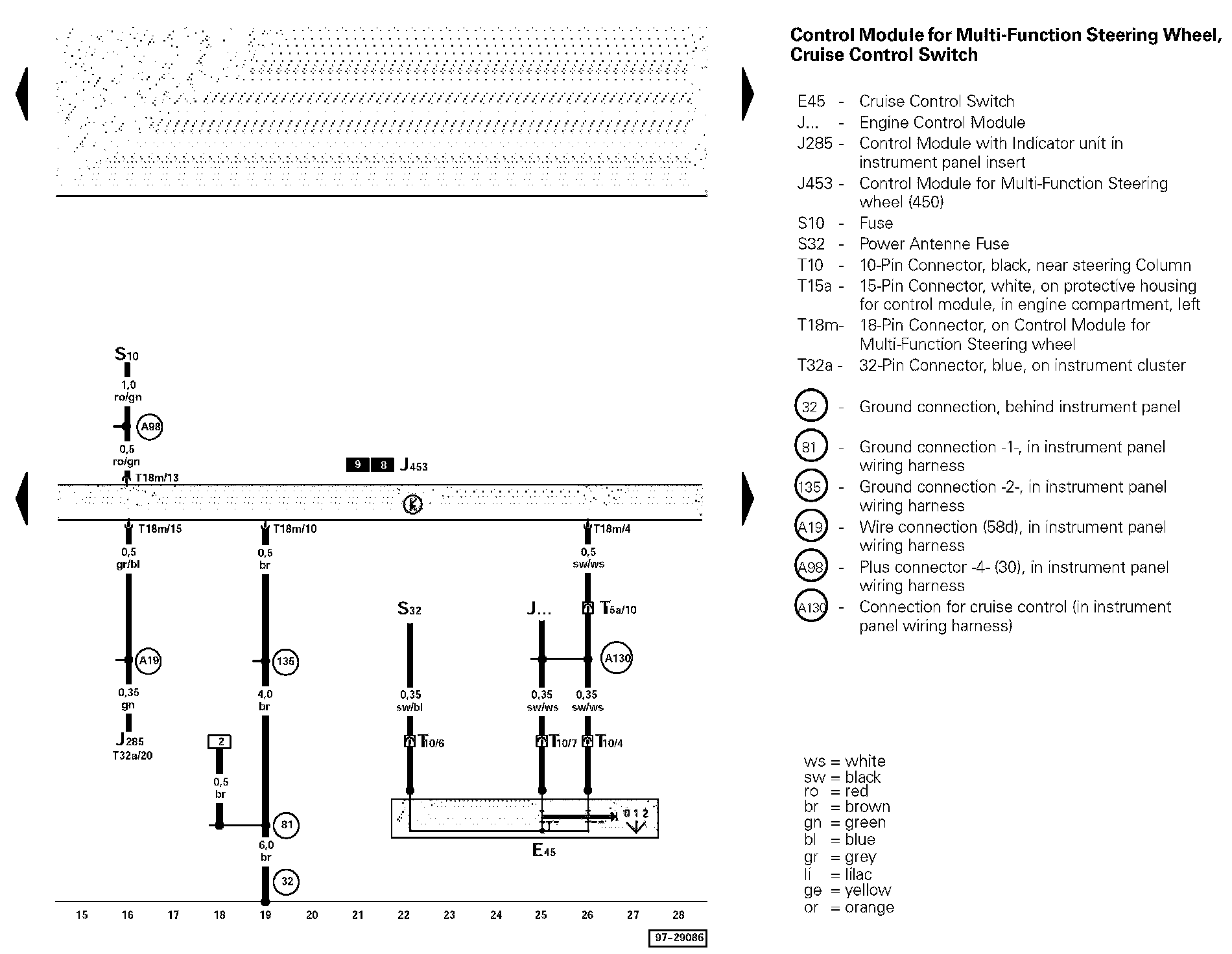

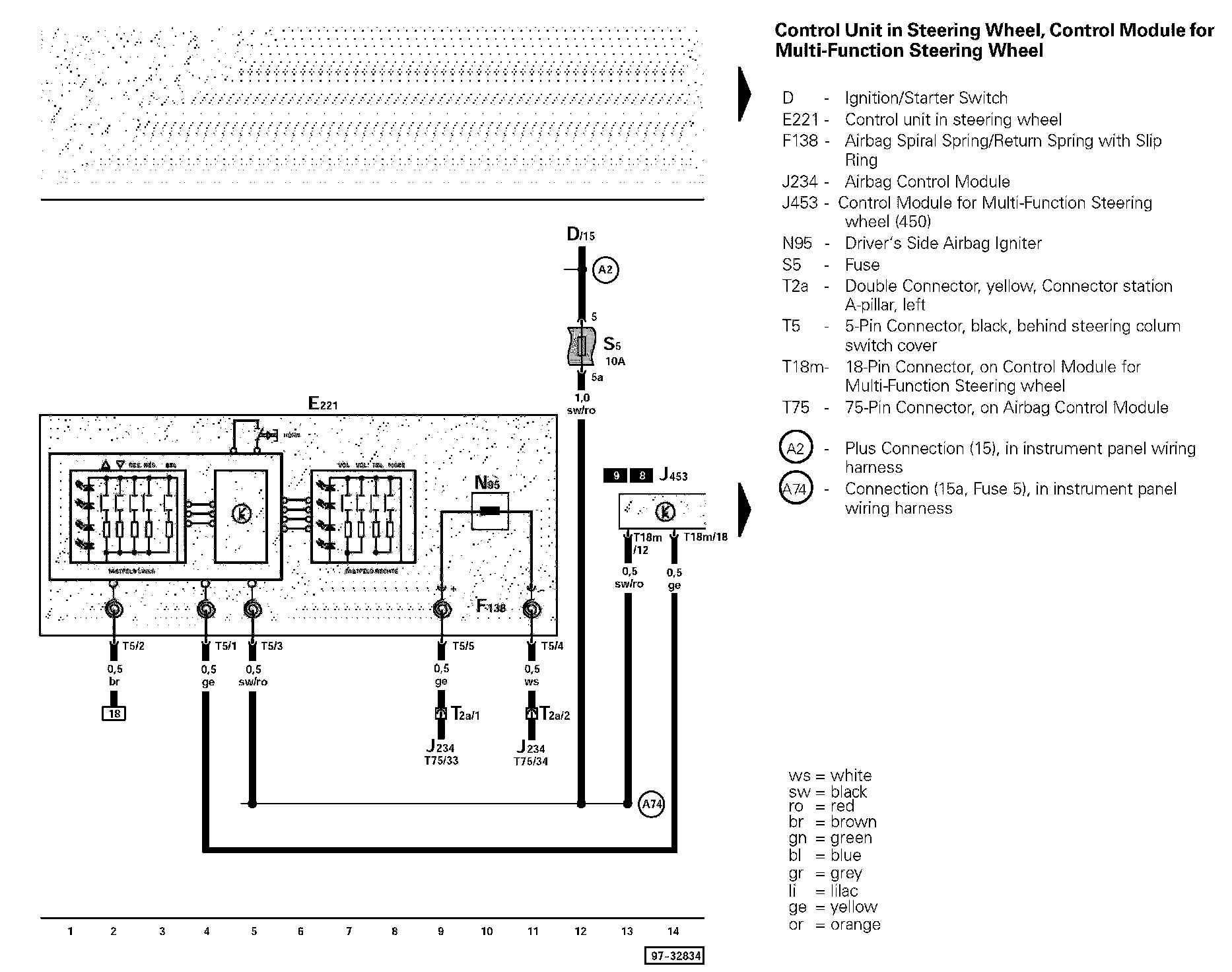

Multi-Function Steering Wheel, from May 2000

IMPORTANT NOTE

This manufacturer uses "Track" style wiring diagrams.

For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
