Track 183-196




IMPORTANT NOTE

This manufacturer uses "Track" style wiring diagrams.

For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

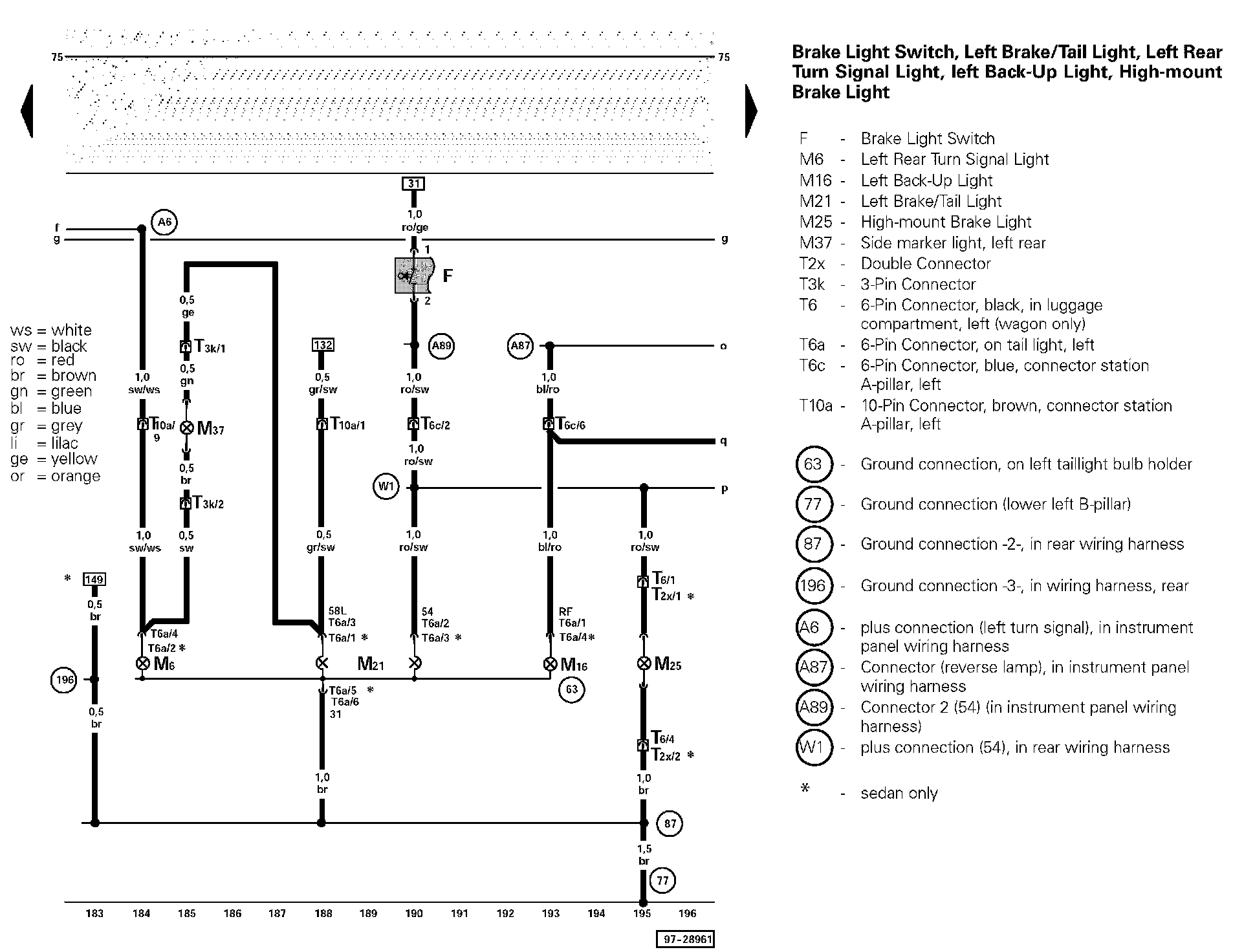

Track 183-196:






Next Track Track 197-210

Previous Track Track 169-182
