Wiring Diagram Index

IMPORTANT NOTE

This manufacturer uses "Track" style wiring diagrams.

For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

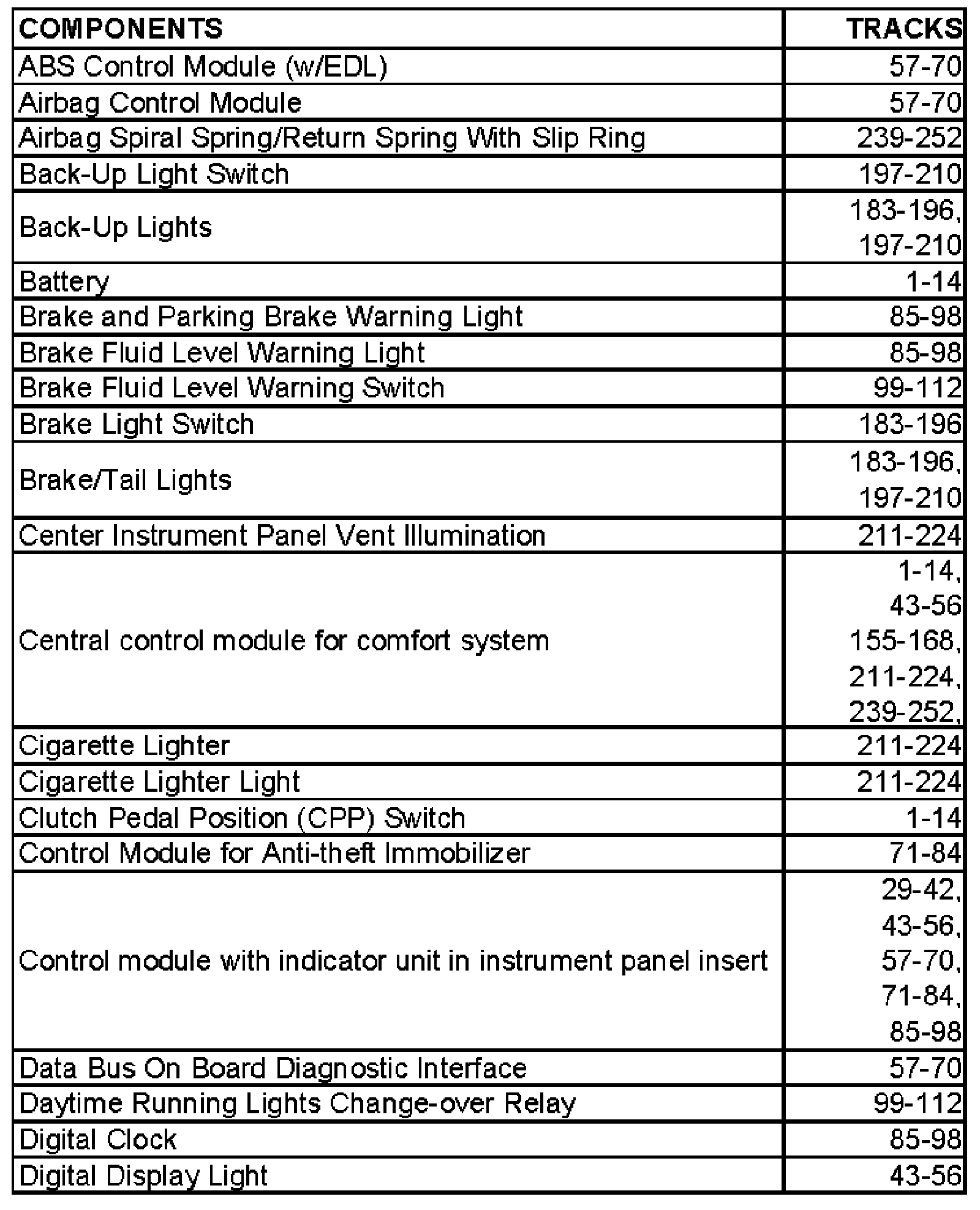

Components "Ab - Di":

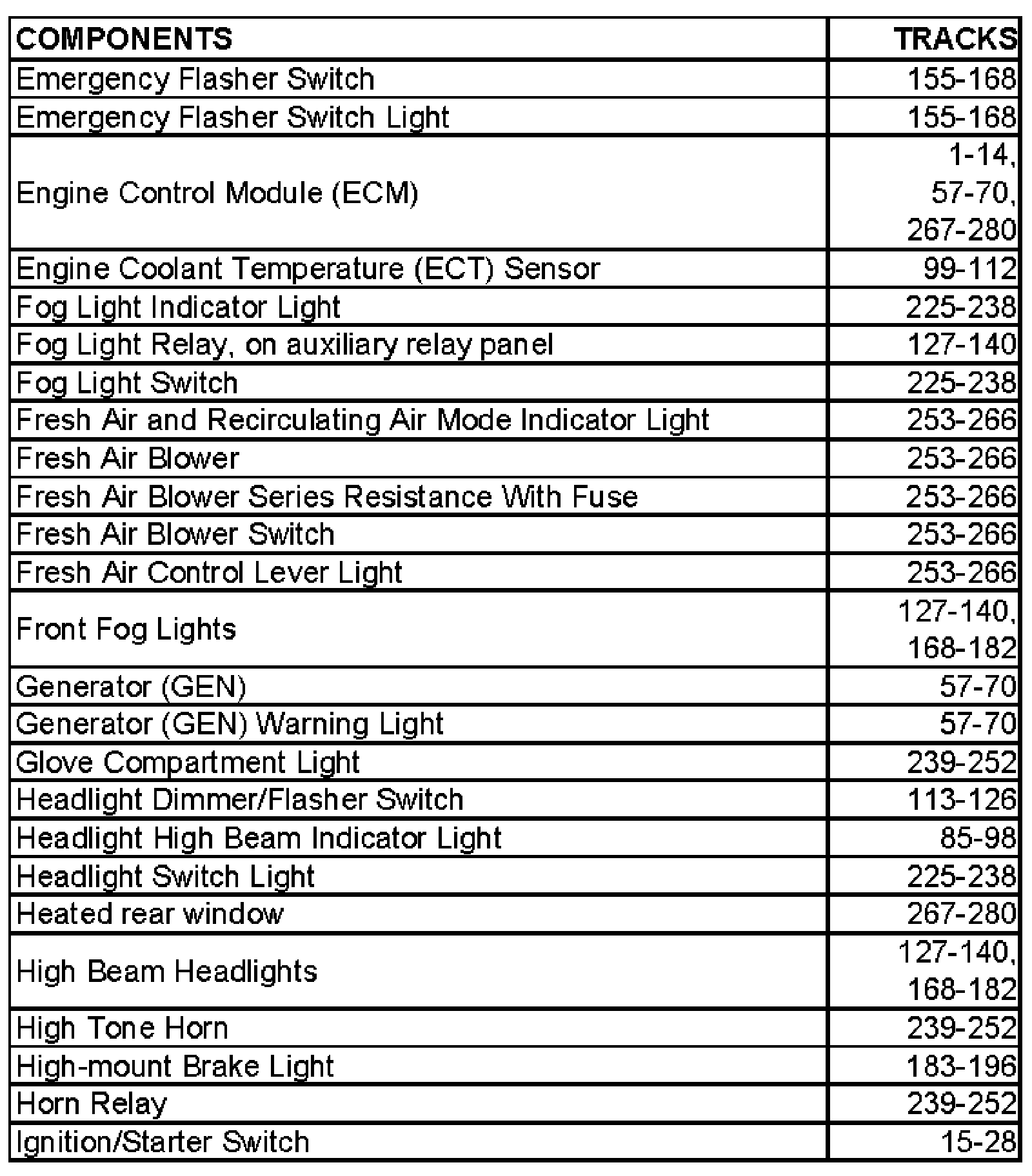

Components "Em - Ig":

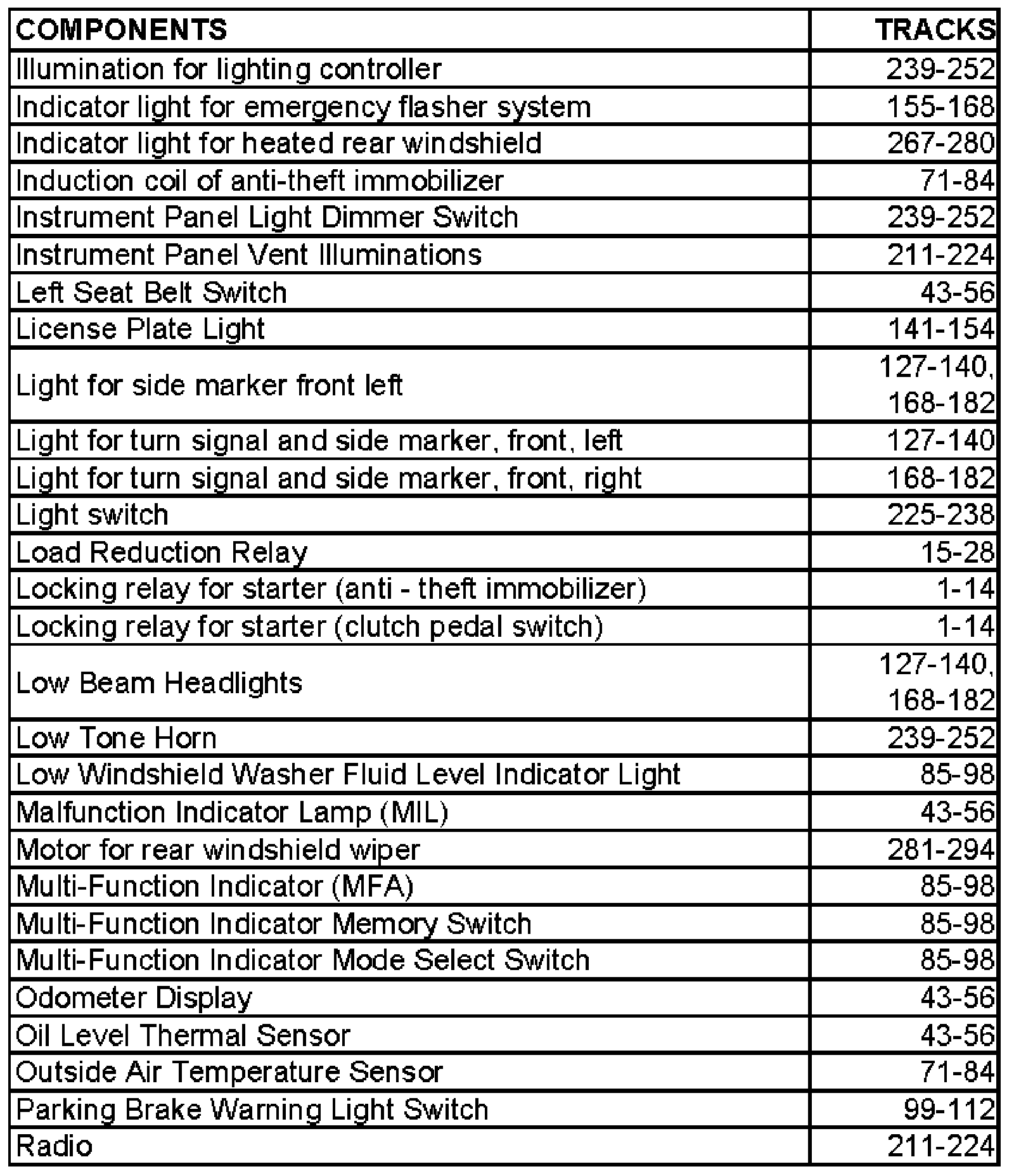

Components "Il - Ra":

Components "Re - Wi":

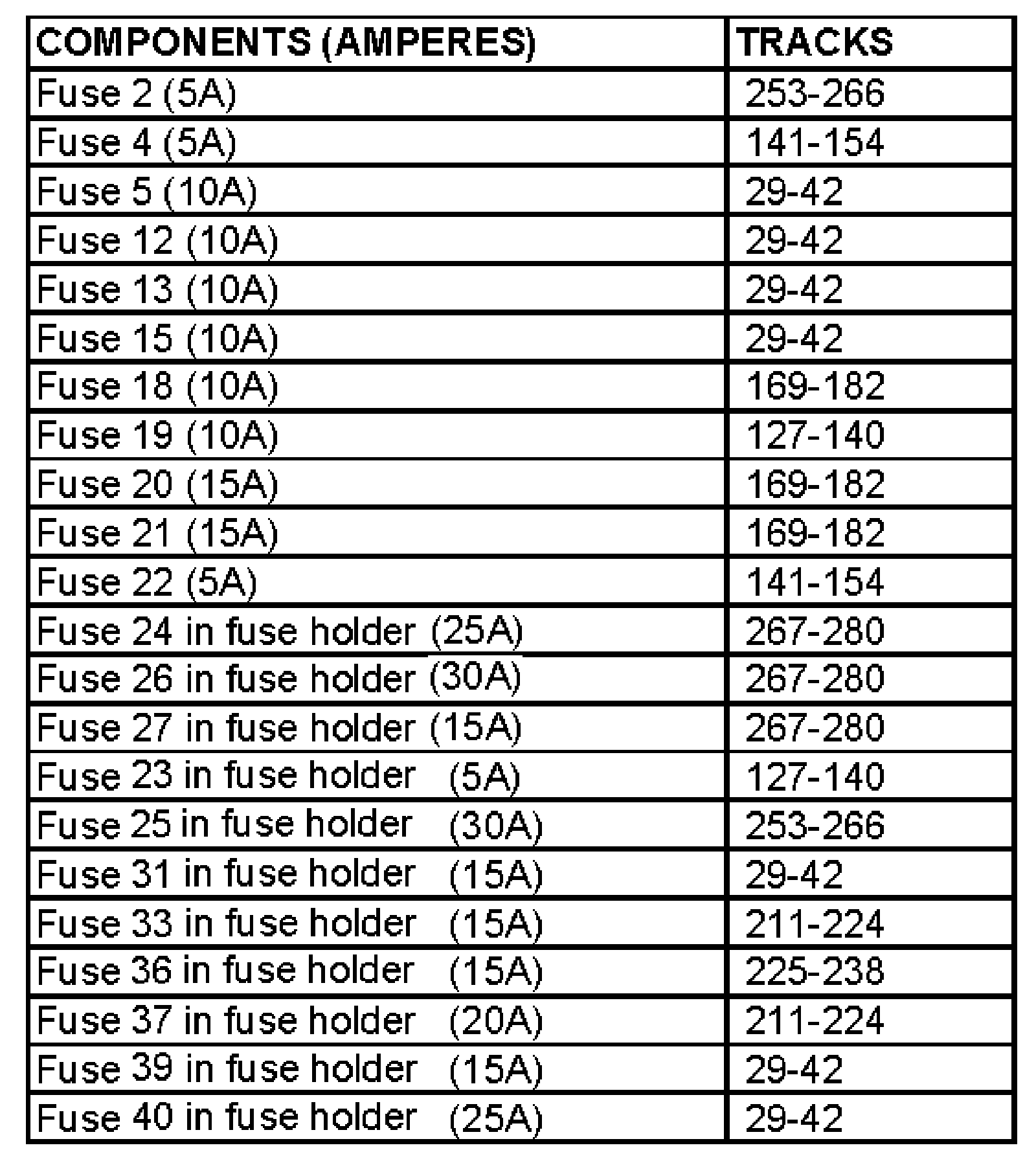

Fuses:

NOTE: Starting with fuse 23, fuses in the fuse holder are identified with an additional numeral 2 added to the number when shown in the wiring diagram (i.e fuse 23 in the vehicle becomes 223 in the diagrams, fuse 24 becomes 224, and so on).
