Wheel Bearing Housing/Track Rod End, Modified

Wheel bearing housing/track rod ends, modified

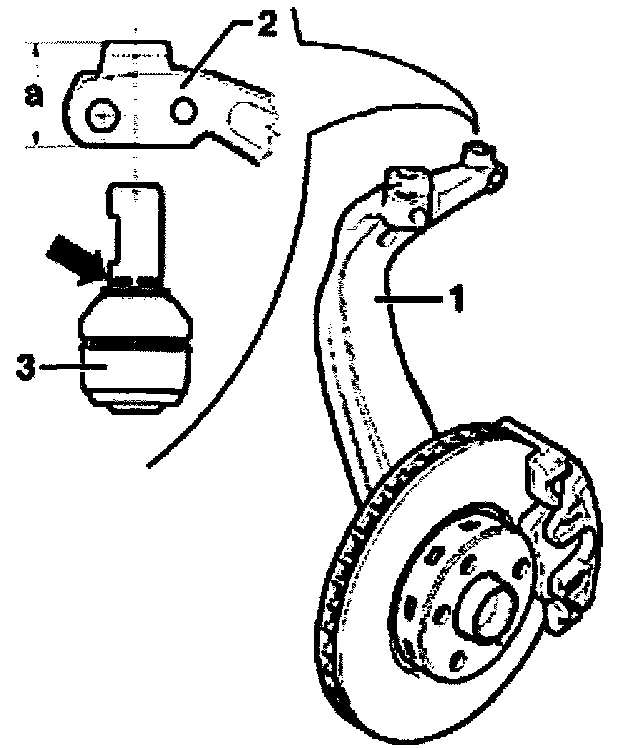

The wheel bearing housing -1- has been modified in the area of the mounting for the track rod ends -2-.
Dimension a; previously: 32 mm
Dimension a; new: 30 mm
Only wheel bearing housings with the modified mounting (30 mm) for the track rod ends will be supplied as a replacement part.
3. Track rod end
with wire ring -arrow
Only these track rod ends will be supplied as a replacement part.
The track rod ends with a wire ring can also be used with wheel bearing housing (dimension a; 32 mm).
The toe adjustment range is reduced by approx. 2 mm with this combination.
If the toe adjustment range for the track curve is not sufficient, the wire -arrow- ring can be removed.
