Center Seats

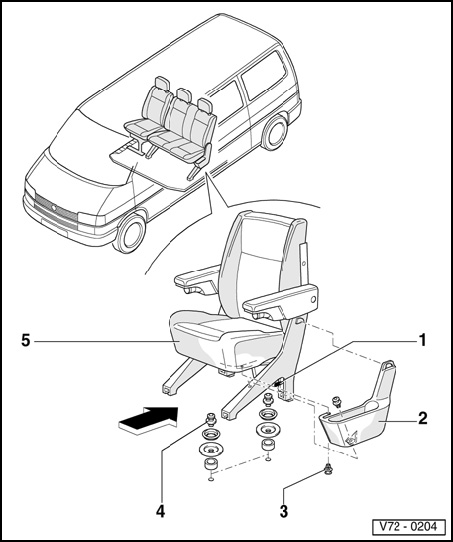

Center Seats, Components

1 - Locking lever
- Left and/or right on seat frame

2 - Map pocket
- Removing: remove clips - 3 -, detach map pocket

3 - Clip
- Two-piece
- Removing: Remove inner part with Allen wrench
- Installing: Press outer and inner parts in hole simultaneously

4 - Bolt
- 30 Nm (22 ft lb)

5 - Single seat or dual bench seat
- Removing: Pull locking lever - 1 - upward, pull seat or bench seat off bolts in direction of arrow.
