T40 Wiring Harness/ABS Control Module Connector Assignment

Connector Terminal Assignment

NOTE: All terminals not listed are currently not assigned and must never be connected to other components!

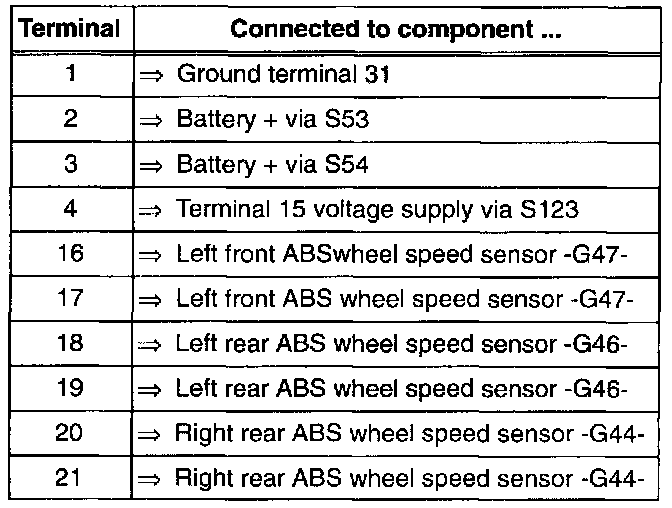

ABS Control Module Connector Pin Identification (Part 1 Of 2):

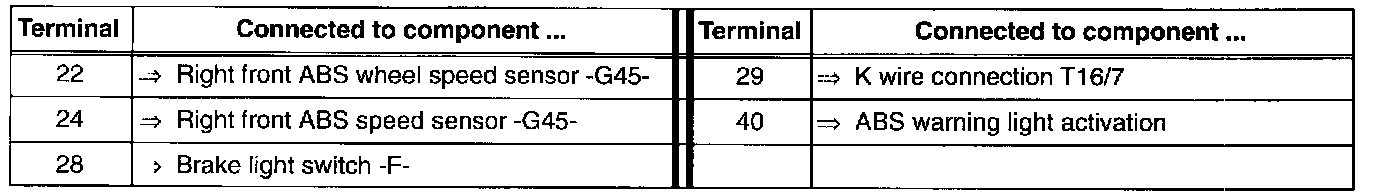

ABS Control Module Connector Pin Identification (Part 2 Of 2):

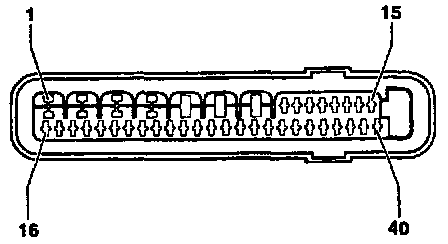

ABS Control Module Connector Pin Identification (Part 3 Of 2):
