Replacement

Component Notes and Information

NOTE:

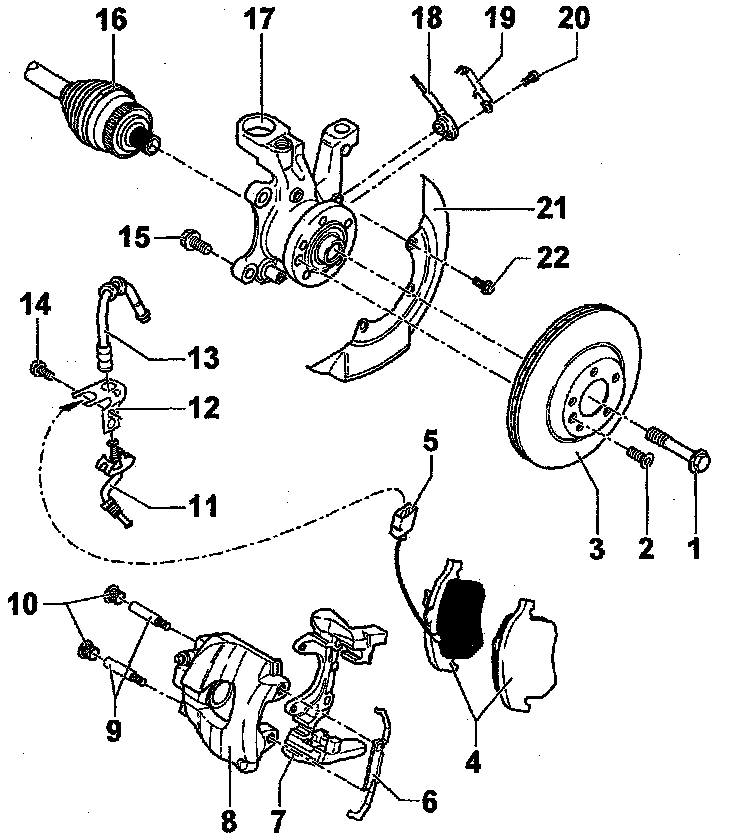

^ During service procedures, refer to the illustration above and the information below
^ After servicing calipers, depress brake pedal firmly several times with vehicle stationary so that the brake pads are properly seated in their normal operating position.
^ To remove brake fluid from the reservoir use a bleeder bottle which is used only for brake fluid

WARNING: Brake fluid is poisonous.

1 Hex bolt
- Tighten to: 150 Nm (111 ft lb) and turn 90° further
- Always replace each time after removing
2 Hex socket head bolt
- Tighten to: 10 Nm (7 ft lb)
3 Brake rotor
- Brake rotor thickness: 26 mm
- Wear limit: 22 mm
- When worn always replace on both sides.
- Never remove brake rotors from hub by force.
If necessary use penetrating fluid, otherwise brake rotors can be damaged.
4 Brake pads
- Always replace on both sides
- With wear indicator: Warning lamp lights up on instrument cluster when wear limit is reached (limit: 2 to 3 mm)
- Pad thickness when new: 13.5 mm
- Checking thickness refer to Brake Pad Testing and Inspection
- Wear limit: 8 mm (including backing plate)
- Removing and installing refer to Replacement. Service and Repair
- Brake pad with retainer spring seats against piston
- Brake pad with adhesive foil on backing plate goes on outer side
5 Connector
- Remove from bracket (item 12) when changing pads
6 Retaining spring
- With additional damper plate
- Insert in both brake caliper, housing holes
7 Brake carrier
- Supplied as replacement part assembled with grease on guide pins
- If protective caps are damaged use repair kit
- Use grease packet supplied in repair kit to lubricate guide pins
8 Brake caliper
9 Guide pins
- Tighten to: 25 Nm (18 ft lb)
10 Protective cap
11 Brake line with union connection
12 Bracket
13 Brake hose
14 Hex bolt
- Tighten to: 10 Nm (7 ft lb)
15 Hex bolt
- Tighten to: 280 Nm (207 ft lb)
16 Drive shaft With impulse rotor for speed sensor
17 Wheel bearing housing
18 ABS speed sensor
- Before installing sensor, clean sensor mounting hole inner surface and coat with lubricant G 000 650
19 Bracket
20 Hex socket head bolt
- Tighten to: 10 Nm (7 ft lb)
21 Splash plate
22 Hex bolt
- Tighten to: 8 Nm (70 inch lb)
