Air Duct: Service and Repair

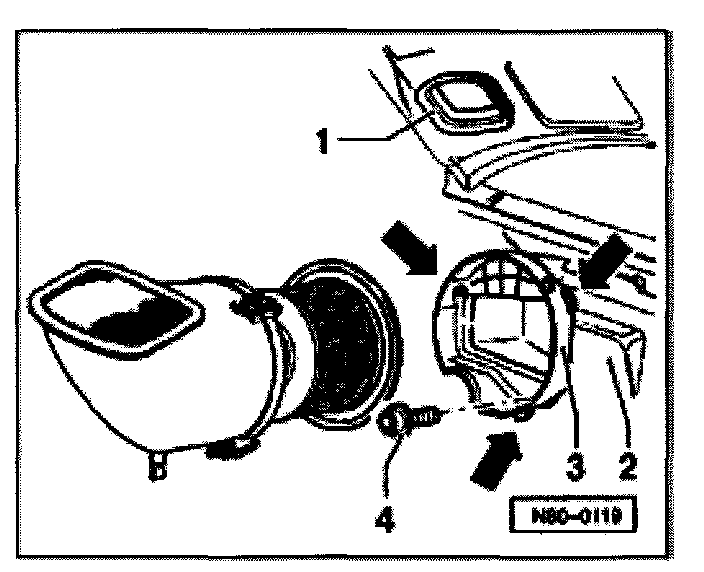

Air Intake Duct, Removing And Installing







1 - Hood insert
2 - Bulkhead
3 - Duct
4 - Socket head combination bolt, 3 Nm (26 in.lb)

Removing:

- Remove dust and pollen filter.
- Remove screws -arrows-.

Installing:

Reassemble in reverse order. Ensure that duct -3- is not inserted into bulkhead at an angle.
