Blower Motor: Service and Repair

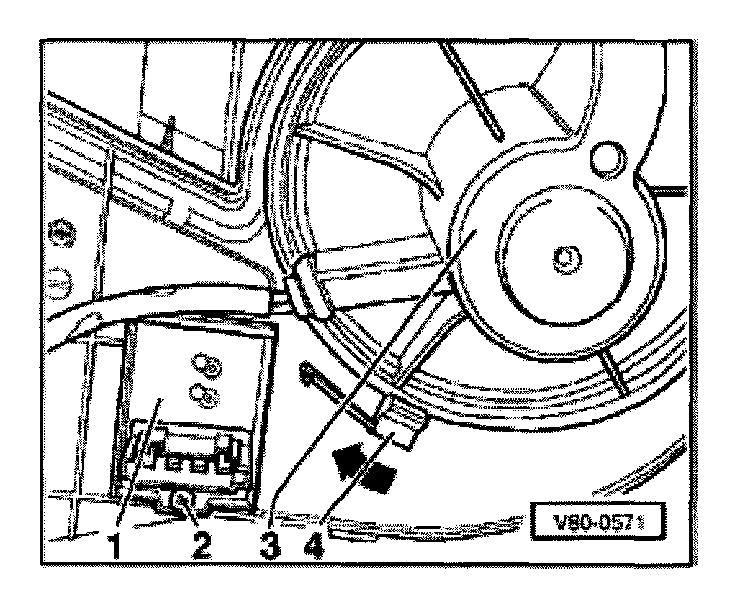

Fresh air blower (-V2-) -3-, removing (heater unit installed)






- Remove glove box, knee padding or passenger side airbag unit.
- Remove electrical connector from series resistance -1 -,
- Remove right air duct.
- Press retaining tab -4-, turn fresh air blower in direction of -arrow- and remove from housing.
- Guide blower to center of instrument panel and remove.
