Ribbed-Belt Pulley, Installing

Ribbed-belt pulley, installing






CAUTION!

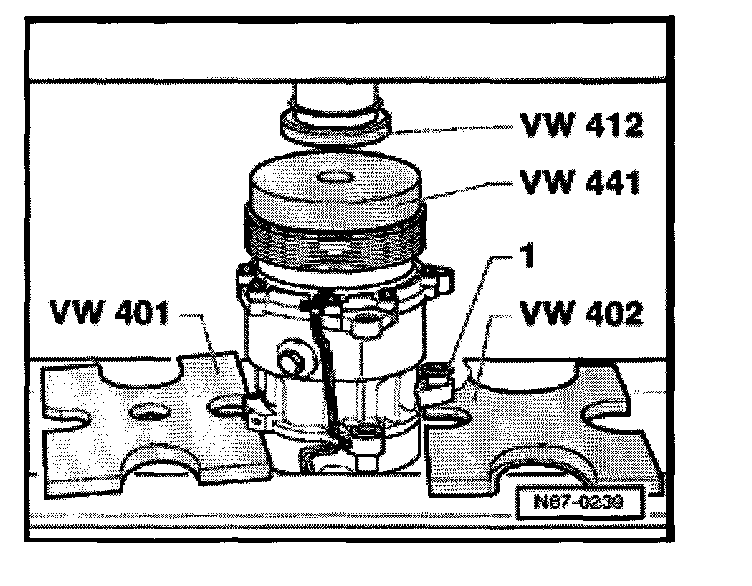

In order to prevent pulley deformation while pressing, ensure compressor remains flat at all times.

- Displace threaded bushing -1-.
- Install circlip, key 3.
