Heating & Ventilation System Servicing (Rear)

Rear Heating And Ventilation Controls*, Removing

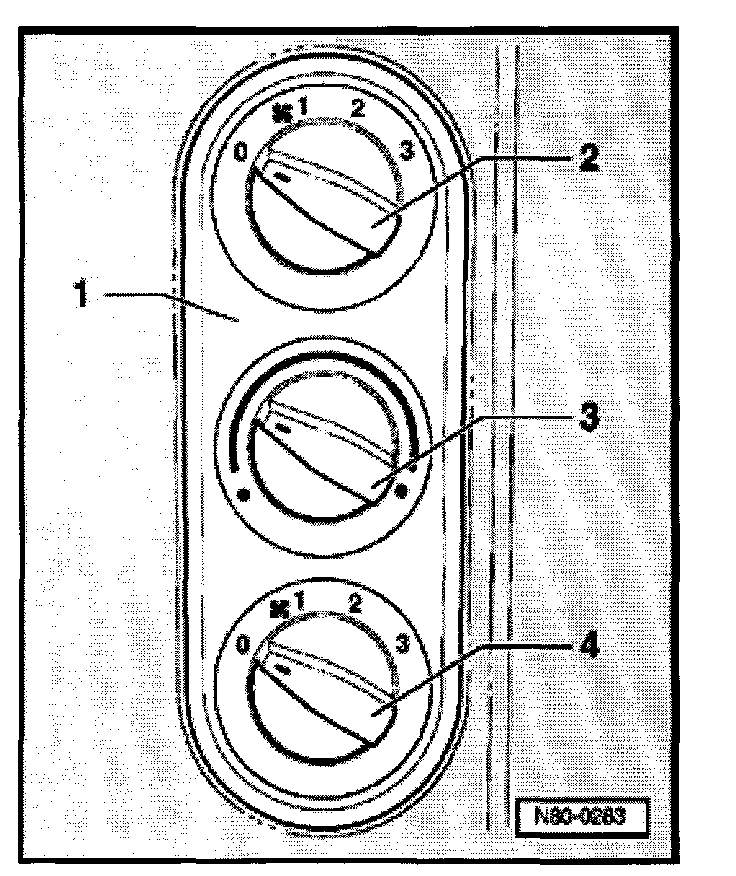

1 - Rear heating and ventilation controls,
2 - Switch for fresh air blower - rear -E179-
3 - Rear interior temperature potentiometer
4 - Warm air blower switch

Removing:
- Pry out controls from bottom using screwdriver
- Disconnect electrical connections


NOTE: Function and removal of rear heating and ventilation controls is identical on air conditioning equipped models.


*) Where applicable
