Coupler HVAC: Service and Repair

A/C System Servicing

Coupling, separating






NOTE: Coupling flanges are held together by spring pressure Use appropriate release tool (based on pipe size) to separate coupling.

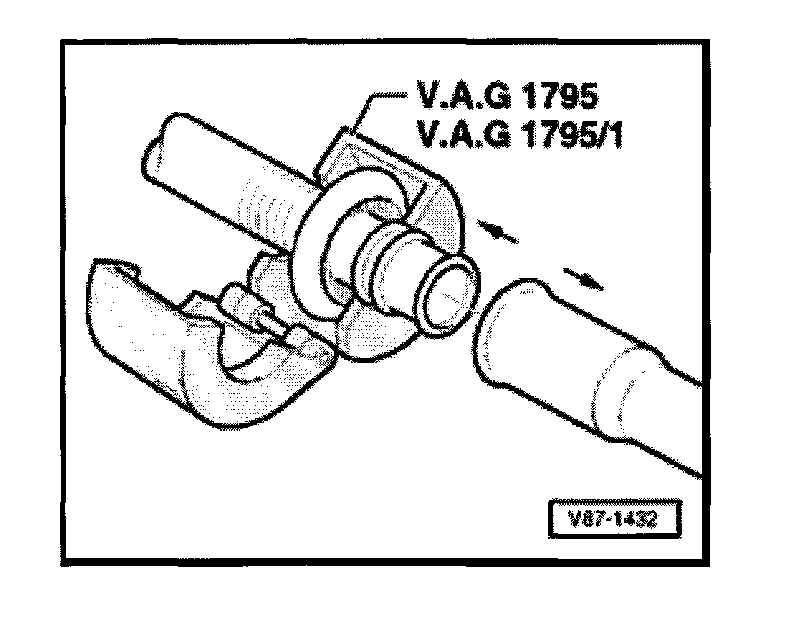

Tension release tool around coupling flanges and pull apart -arrows-.
