Heater Control Valve Cable: Adjustments

Heating And Ventilation System Servicing

Heater Control Valve Cable, Adjusting

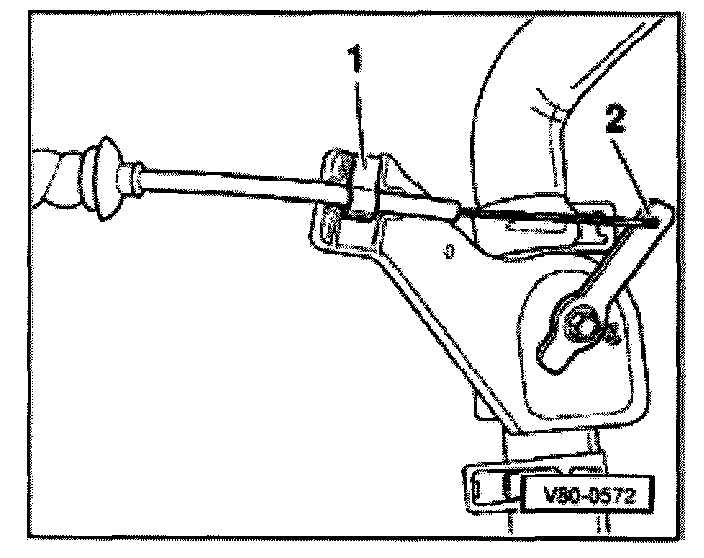

- Guide cable through engine compartment bulkhead to valve lever -2- and connect.
- Slide lever -2- left to stop (off/cool).
- Secure cable housing to valve with clip -1-.
