Heating Unit, Assembly

Heating Unit, Assembly


CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti- theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Manual and/or Owner's Manual.

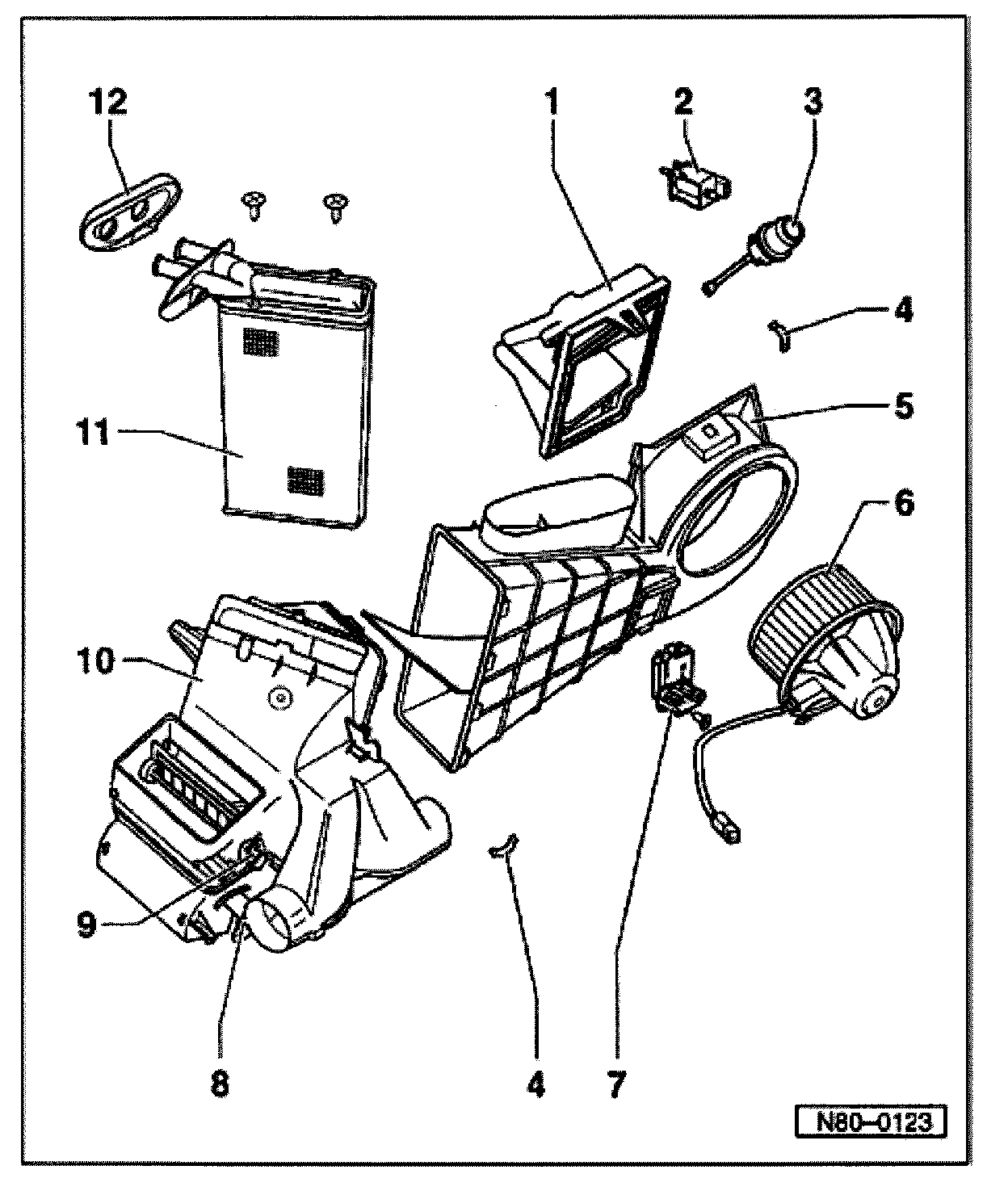

1 - Air intake duct
- With recirculating air flap
2 - Fresh air/recirculating flap two-way valve -N63-
3 - Fresh air/recirculating flap vacuum unit
4 - Clip
5 - Air duct
6 - Fresh air blower-V2-
7 - Fresh air blower series resistance with fuse -N24-
8 - Footwell flap lever
- Removing:
- Disconnect lever with a screwdriver.
9 - Defroster flap lever
- Removing:
- Disconnect lever with a screwdriver.
10 - Air distribution housing
11 - Heater core
- Install seals around entire circumference of heater core
12 - Gasket
