Alternator From 04.99

6 - Cylinder Engine 04.99 >


CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows.


NOTE: Checking Generator (GEN):

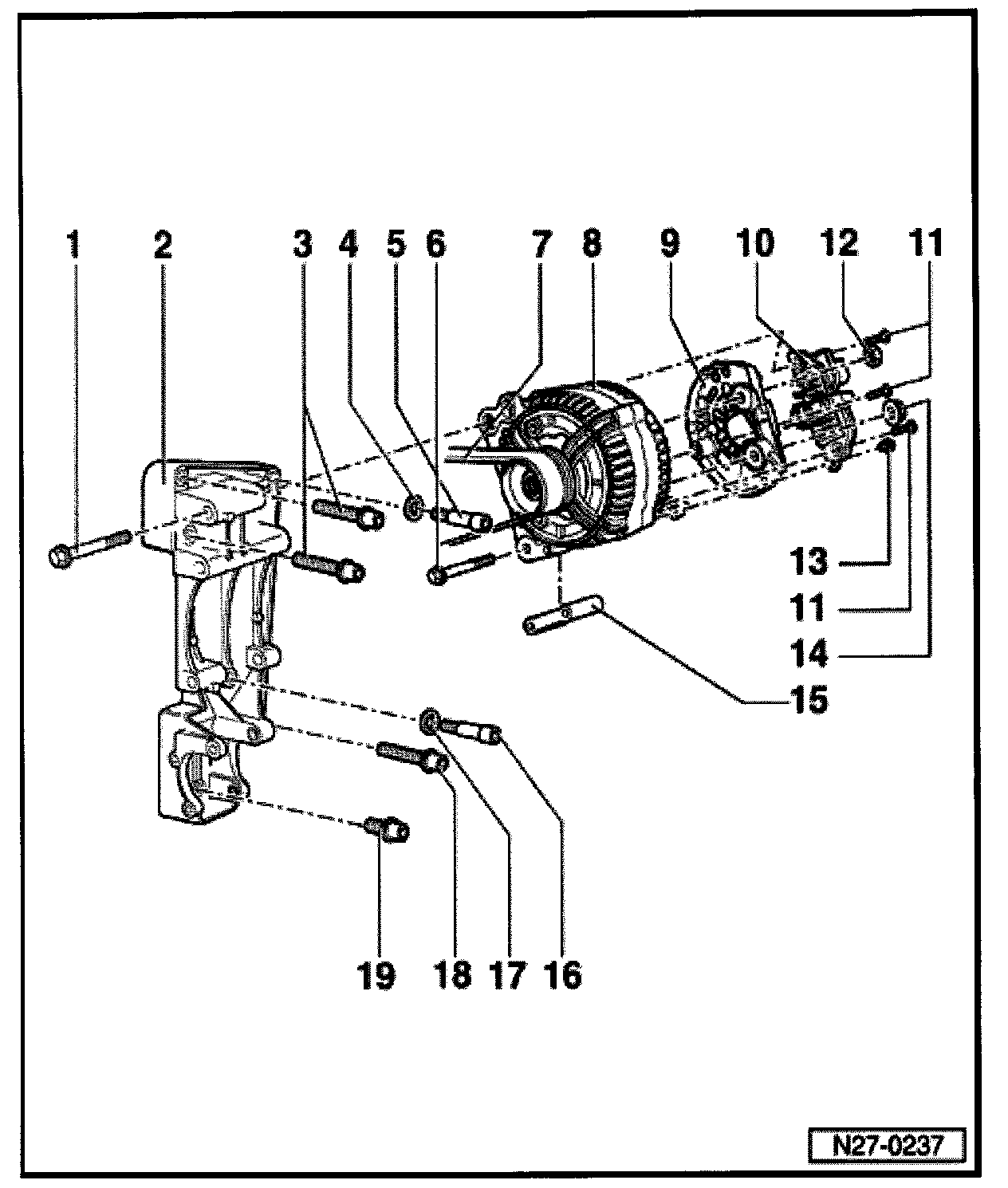

1 - Hex bolt M8
- 25 Nm (18 ft. lb.)
2 - Bracket
3 - Hex socket bolts M8x60
- 25 Nm (18 ft. lb.)
4 - Washer
5 - Hex socket guide bolt M8x60
- 25 Nm (18 ft. lb.)
6 - Hex bolt M8
- 25 Nm (18 ft. lb.)
7 - Ribbed belt
- Ribbed belt, routing See Fig. 1
8 - Generator (GEN)
9 - End cap
10 - Voltage - Regulator (VR)
- Checking carbon brushes
11 - Screw
12 - Hex nut
- M8
13 - Screw
14 - Hex nut
- M8
15 - Bracket
- Between Generator (GEN) and A/C compressor
16 - Hex socket guide bolt M8x60
- 25 Nm (18 ft. lb.)
17 - Washer
18 - Hex socket bolt M8x60
- 25 Nm (18 ft. lb.)
19 - Hex socket bolt M8x20
- 25 Nm (18 ft. lb.)

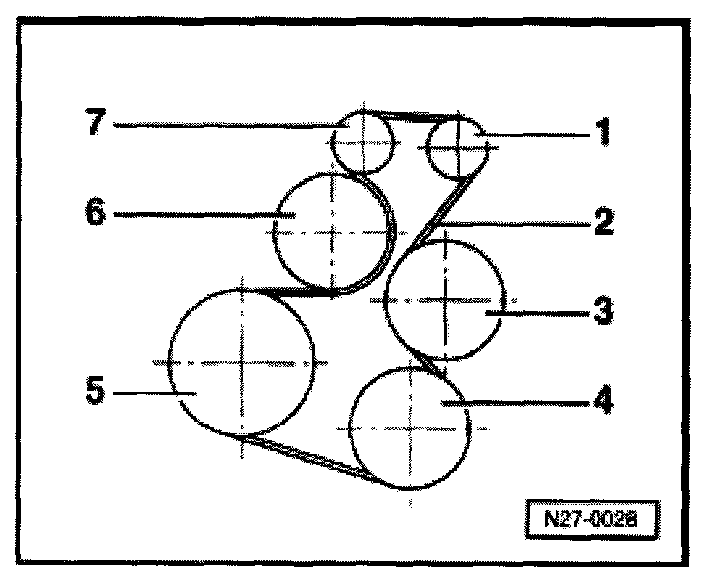

Ribbed belt, routing







Fig.1 6-cylinder engine

1 - Pulley - Generator (GEN)
2 - Ribbed V-belt
3 - Pulley - A/C compressor
4 - Pulley - power steering pump
5 - Pulley - crankshaft
6 - Pulley - coolant pump
7 - Tensioning roller
