Frame (Repair Profile, Side And Rear Windows), Installing

Frame (Repair Profile, Side And Rear Windows), Installing

The repair profile can be supplied for side windows and rear windows.
- Spray glass edge with D 009 401 04 lubricant.

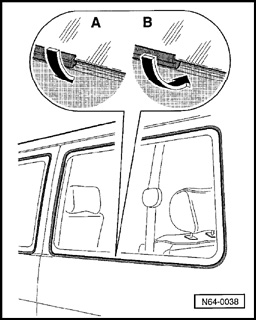

- Place repair molding in middle lower area - arrow A - and fasten along window opening - arrow -.
- Cut repair molding approximately 4 mm (0.15 in.) longer.







- Apply Cyan acrylic adhesive AMV 195 KD 1 to repair molding end.







- Repair molding end should also be attached - arrow A -.
- Press repair molding - arrow B - together and hold for five seconds.
- Install remainder of seal in window opening.
