Front Door Window Glass: Service and Repair

Door Window, Removing And Installing

Door glass, removing
- Remove front door trim.
- Open window completely and remove from regulator.

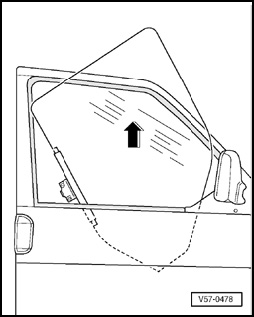

- Tilt door glass toward front and lift out through window slot.

Door glass, installing







- Position window in door.
- Loosely screw regulator rail to regulator.
- Close window completely with crank mechanism and tighten bolts - 1 - to 7 Nm (62 in.lb).
