NOTE: Windows must be used within 10 minutes, otherwise adhesion of adhesive will be impaired.







- Apply adhesive sealing material all around window:
- - a - = 13 mm (0.5 in.)
- - b - = 8 mm (0.3 in.)

NOTE:
- To install rear double door window and sliding door window, adhesive sealing material is applied to window flange on door.
- Height of adhesive bead should be reduced by dimension of residual material on window or on body flange and/or window flange on door.

CAUTION:
- Components A and B must by mixed according to enclosed instruction sheet.
- Window must be used within 10 minutes, otherwise adhesion of window adhesive will be impaired.

- Install window in window cut-out using double suction cups (VAG 1344).

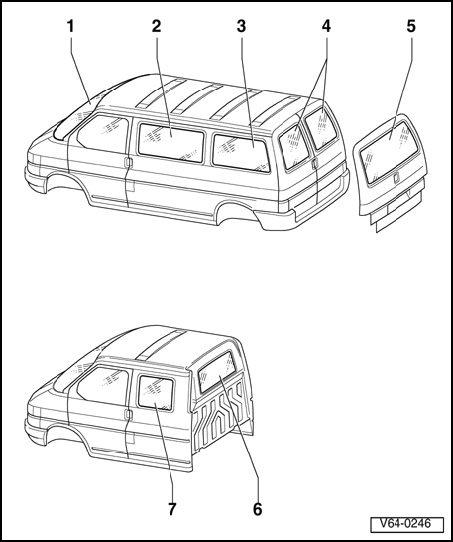

- Center window and press into window cut-out as follows:

Windshield







- - a - = 3 to 4 mm (1/8 to 5/32 in.) all around
- - b - = 1 to 2 mm (1/32 to 5/64 in.) all around

Side and rear window







- - a - = 3 to 4 mm (1/8 to 5/32 in.) all around
- - b - = 1 to 2 mm (1/32 to 5/64 in.) all around

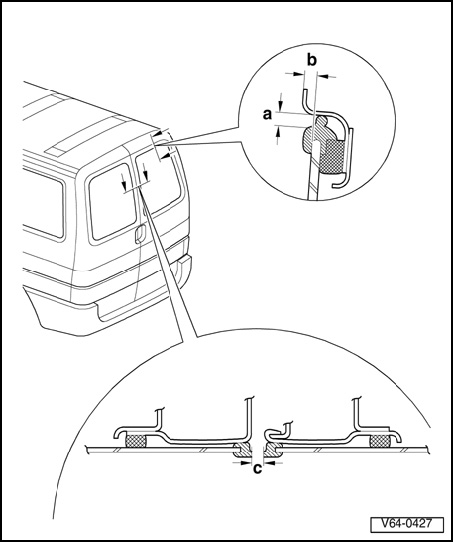

Rear double door window







- - a - = 3 to 4 mm (1/8 to 5/32 in.) all around
- - b - = 1 to 2 mm (1/32 to 5/64 in.) all around
- - c - = 7 to 8 mm (9/32 to 5/16 in.) all around
