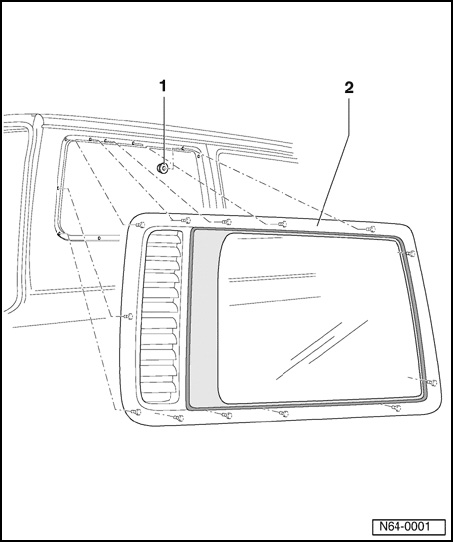

Side Window With Trim, Assembly Overview

Side Window With Trim, Assembly Overview







NOTE: To remove side window, remove trim and parts of passenger compartment ventilation.

1 - Nut
- 2.2 Nm (19 in.lb)

2 - Side window with air intake trim
- Bolted to vehicle with studs
