Rear Window Wiper/Washer System, Assembly
Rear Window Wiper/washer System, Assembly
CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio

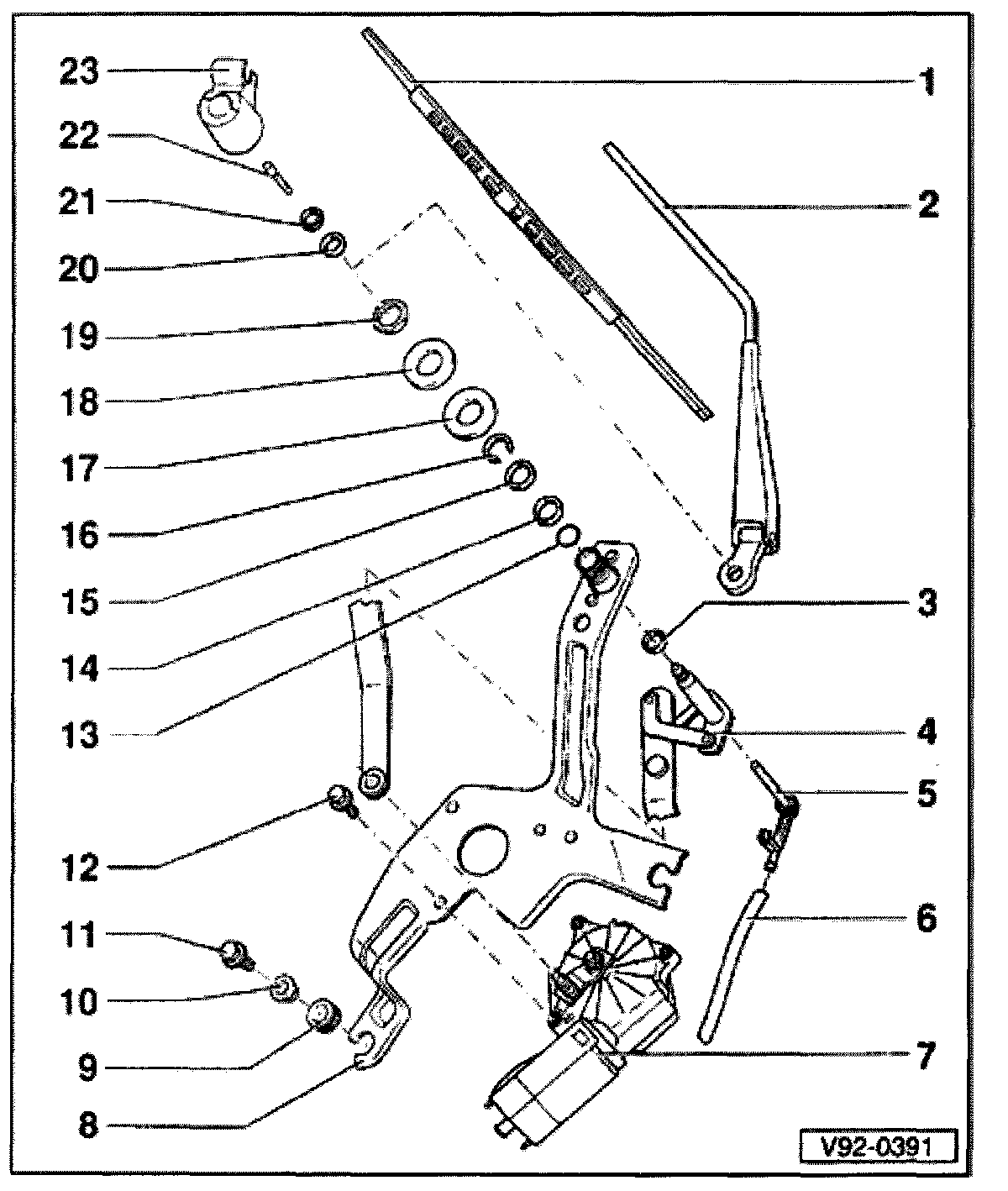

1 - Wiper blade
2 - Wiper arm
3 - Spring washer
4 - Wiper linkage assembly
5 - Washer jet connecting pipe
6 - Hose
7 - Motor for rear windshield wiper -V12-
8 - Bracket
9 - Rubber ring
10 - Spacer
11 - Hex bolt M6
- 5 Nm (44 in. lb.)
12 - Hex bolt M6
- 5 Nm (44 in. lb.)
13 - O-ring
14 - Spacer washer
15 - Washer
16 - Snap ring
17 - Plastic washer
18 - Spacer
19 - Hex nut M16
- 10 Nm (89 in. lb.)
20 - Washer
21 - Hex nut M8
- 16 Nm (12 ft. lb.)
22 - Jet
23 - Cap
