Outside Rear View Mirror (Manual), Removing
Outside Rear View Mirror (manual), Removing
- Removing front door trim.

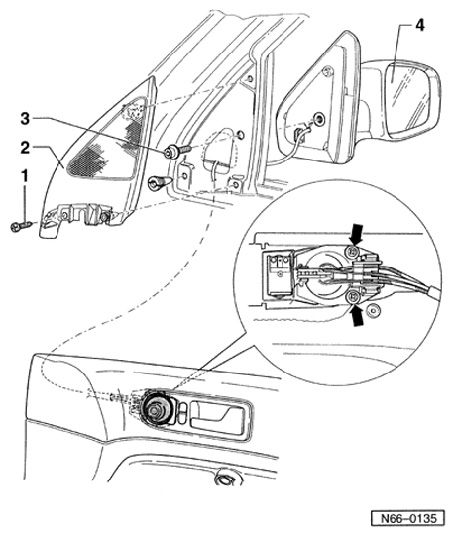

- Remove mirror adjuster from inside of door trim - arrows -.
- Remove bolt - 1 - and unclip cover - 2 -.
- Remove insulating foam from mirror triangle.
- Remove bolt - 3 - and remove rearview mirror - 4 - from front door.
