Front Seat Cover And Upholstery, Removing and Installing

Front Seat Cover And Upholstery, Removing And Installing

NOTE:
- Removal and installation is described for left front seat. same instructions apply for removal and installation for right front seat.
- Slight changes may have to be made to removal and installation procedures, depending upon equipment installed in vehicle.

Removing
- Remove seat.
- Remove backrest.







- Pull off cover - 1 - from seat frame - 2 - - arrows -.

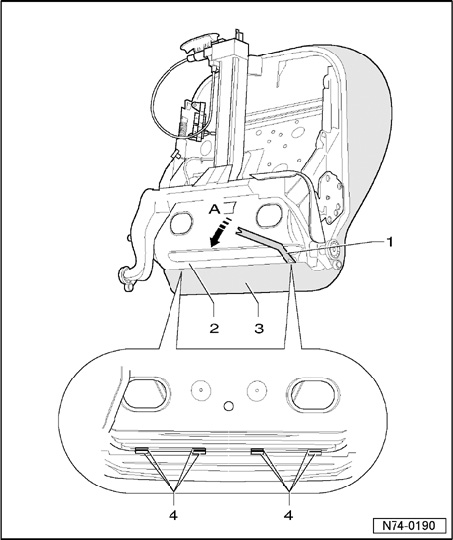

- Guide Pry lever 80 - 200 - 1 - between seat frame - 2 - and cover - 3 - and press apart locking lugs - 4 - - arrow A -.
- Remove cover - 3 - and cushion from seat frame - 2 -.







- Remove cover.







Installing
Installation is reverse of removal.
