Instrument Panel Crossmember, Loosening/Tightening

Instrument panel cross member, loosening and tightening

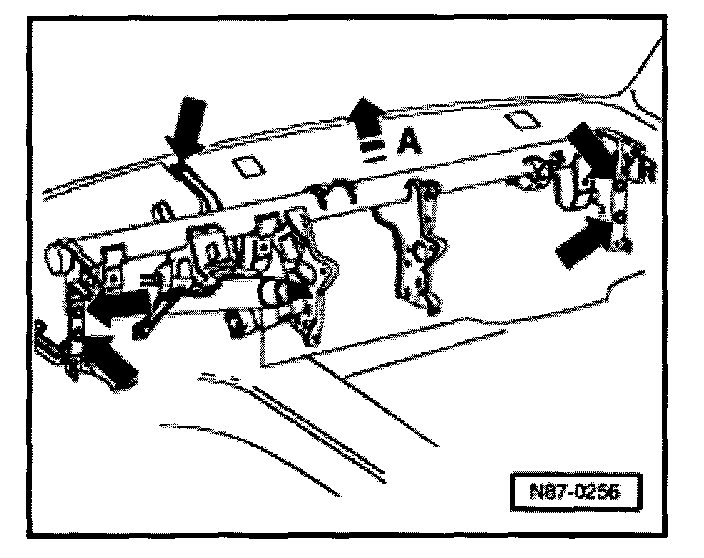

- Remove bolts -arrows-
- Tightening torque: 25 Nm (18 ft. lb.)
- To access or remove heating unit and surrounding parts, lift cross member in direction of arrow -A- and support.


NOTE:

- To avoid damage to the steering column, have a second technician assist.
- If removed components are not to be reinstalled immediately, secure cross member to the bulkhead.
- Any wiring harnesses released from their retainers must be secured again at the same point, using the same retainers.
