Headlight Securing Lugs, Servicing
Headlight Securing Lugs, Servicing
NOTE:
- If headlight lower securing lugs break due to application of excessive force, it may still be possible to service headlight in a cost effective manner (though headlight housing must not be damaged).
- Remove headlight housing
- Sand headlight tab socket breakage point on headlight down flat.

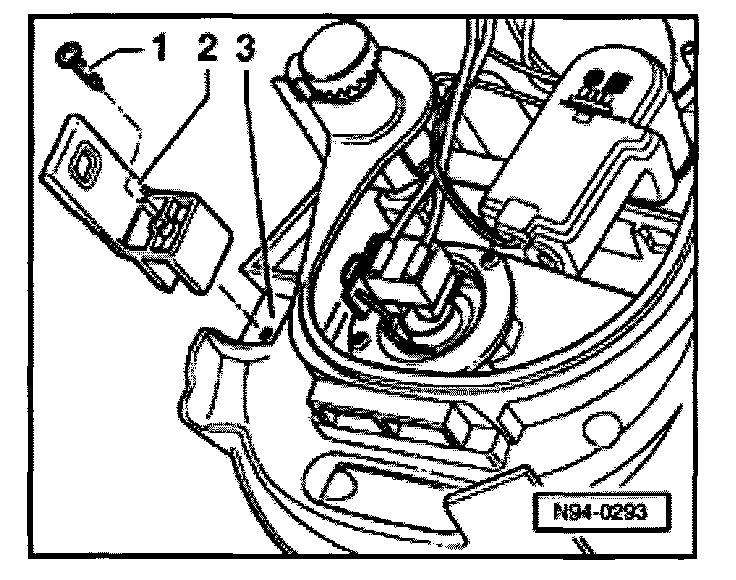

- Set replacement part securing tab -2- onto securing tab socket -3- and secure with screw -1-.
- Install headlights.
- Check headlight adjustment if necessary.
