Fuse Holder, Removing and Installing

Fuse Holder And Relay Carrier


CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows.


Fuse Holder, Removing And Installing

- Carefully pry-off side cover from instrument panel (left).
- Remove driver's side instrument panel trim.

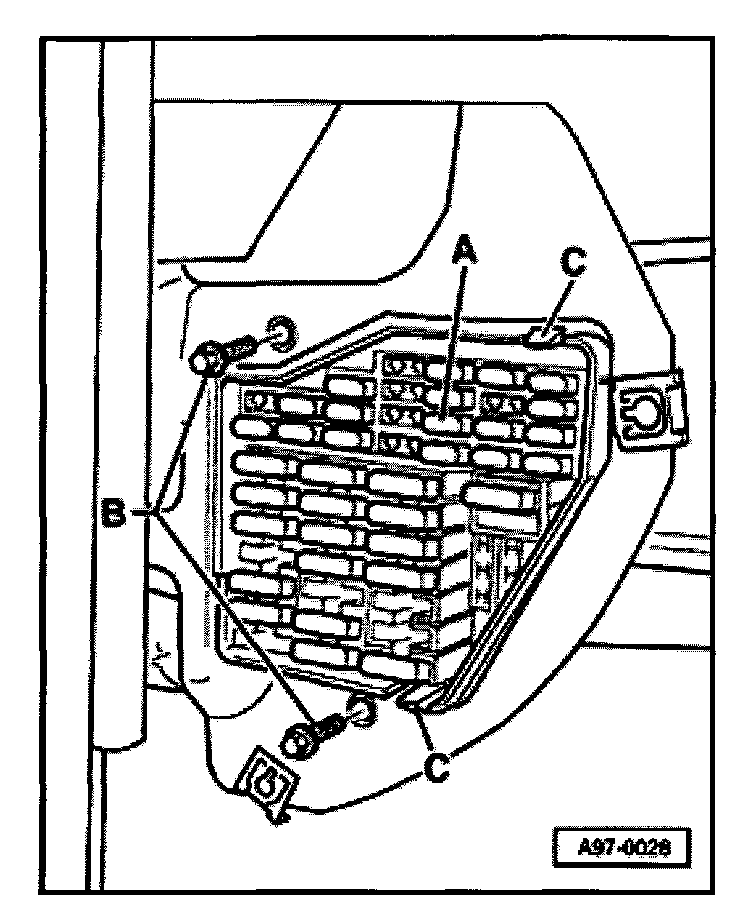

- Remove screws -B- (2 Nm) and then press locking device -C- when doing this pull fuse holder -A- out inward.
