Alternator: Specifications

Generator (GEN) B+ & D+ Connections 05.99, Securing

Special tools, testers, measuring instruments and auxiliary items required

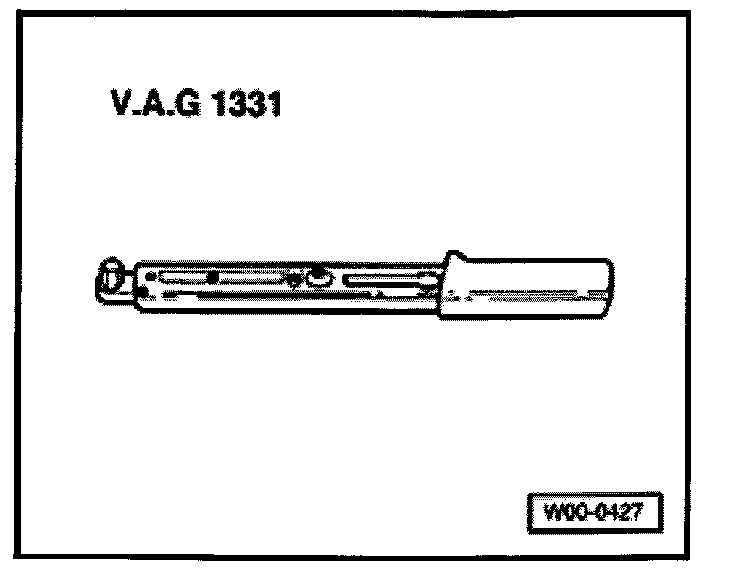

- VAG 1331 Torque wrench (or equivalent 5 - 50 Nm)


NOTE: Screw connection for the B+ wire at compact generator is labeled B1+!







The tightening torque for the B+ wire -arrow- securing nut is 15 Nm.


CAUTION!
If the B+ or D+ terminal nut is not torqued as specified, the following may result:
- Battery will not be completely charged
- Vehicle electrical system malfunctions
- Danger of sparking
- Damage to electronic components and control modules due to voltage spikes
