Protective Housing In Plenum Chamber, Removing and Installing

Protective Housing In Plenum Chamber, Removing And Installing

Removing
- Removing windshield wiper system.

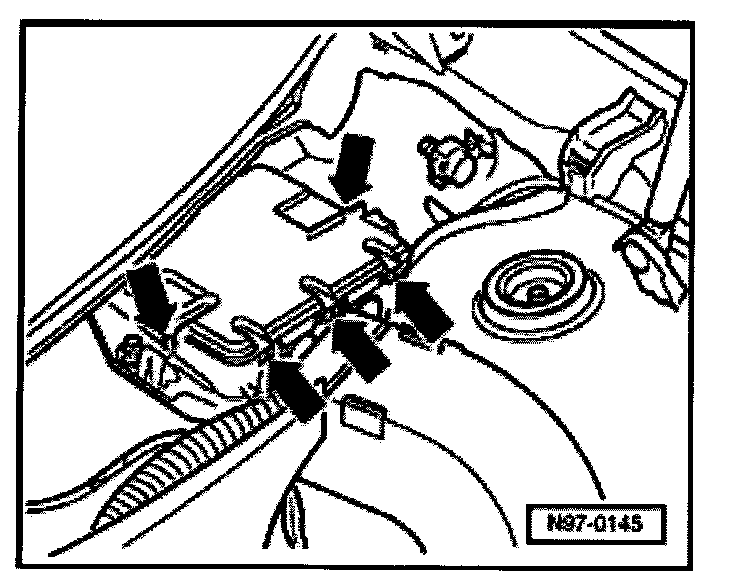

- Unclip protective housing cover at the retaining lugs -arrows- and take out upward.
- Separate connectors and take wiring harnesses out of protective housing.







- Remove securing nuts -arrows- and remove protective housing.

Installing
Install in reverse order of removal.
