Automatic Transmission/Transaxle: Locations

Electrical/Electronic Component Locations

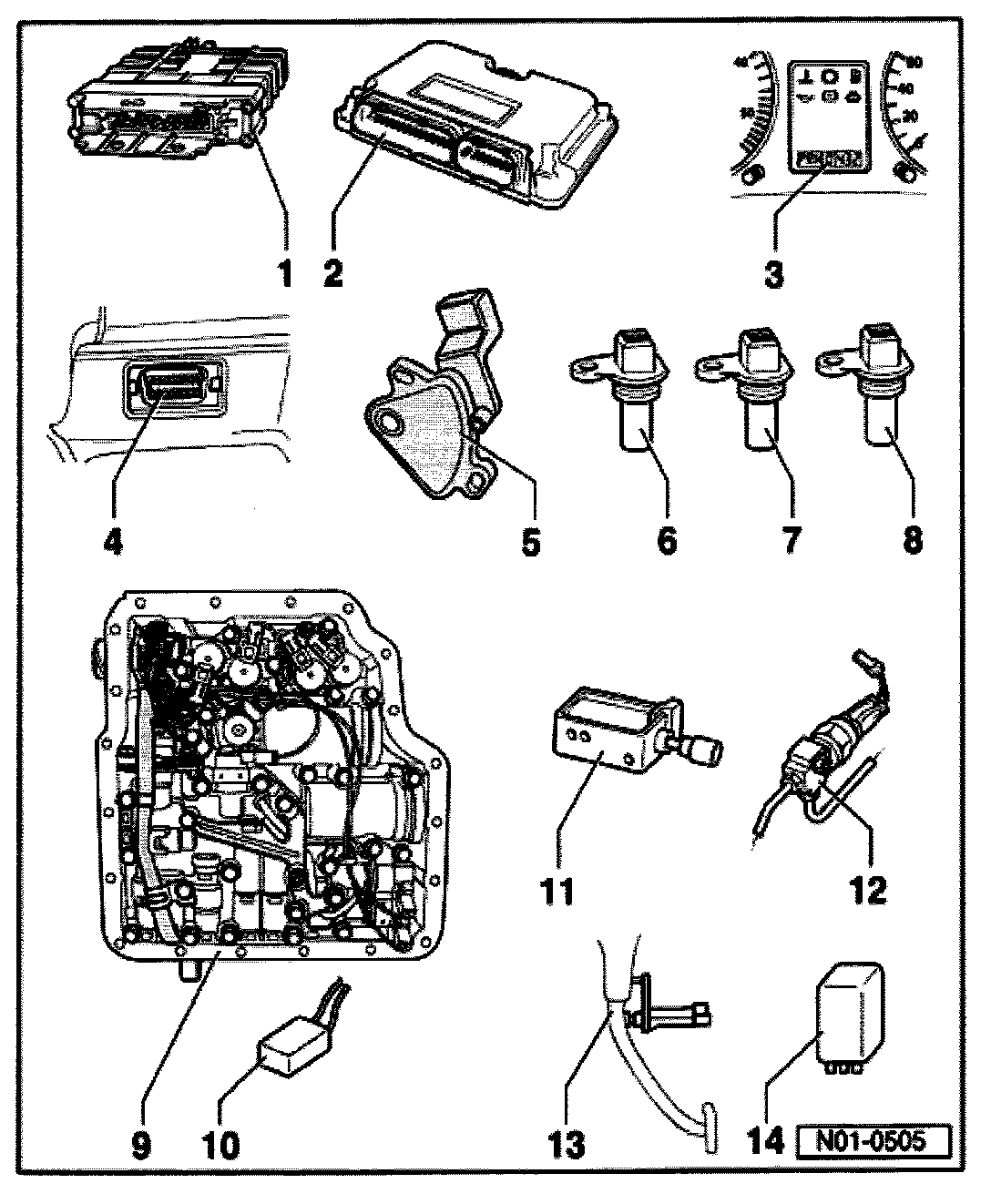

Transmission Electronic Components:

1 - Automatic Transmission Control Module -J217-
- Checked by On Board Diagnostic (OBD).
- Control module sends and receives data from data bus.
2 - Engine Control Module
- Control module sends and receives data from data bus.

NOTE: If the engine or transmission control modules are replaced, the system must be returned to basic setting.

3 - Instrument cluster with data bus On Board Diagnostic (OBD) interface -J533-
- With selector lever position display
- Control module sends and receives data from data bus.
4 - Data Link Connector
5 - Multi-Function Transmission Range (TR) switch -F125-
- -F125- is checked by OBD
6 - Intermediate shaft speed sensor -G265-
- Picks up signal on spur gear A
- Location: in transmission
- -G265- is checked by OBD
7 - Vehicle speed sensor -G68-
- Picks up transmission output speed (road speed)
- Location: in transmission
- -G68- is checked by OBD
8 - Sensor for transmission RPM -G182-
- Picks up transmission input speed (turbine shaft)
- Location: in transmission
- Checked by OBD
9 - Valve body
- Location: in transmission
- The solenoid valves - N88-, -N89-, -N90-, - N91-, -N92-, -N93-, - N281-, -N282- and - N283- are attached to the valve body
- The valves are checked by OBD
10 - Transmission fluid temperature sensor -G93-
- Location: in transmission
11 - Shift lock solenoid -N110-
- The solenoid is checked by OBD
- Can be checked in measured value block and electrically.
12 - Brake pressure switch - F270-
- Signal can be checked in measured value block
- Location: switch is located on bulkhead in brake line to front right- hand wheel
13 - Brake light switch -F-
- Can be checked electrically and via reading measured value block
14 - Park/Neutral Position (PNP) Relay -J226-
