Transmission Identification

Transmission identification
The 02M manual transmission is installed as a 5 or 6-speed transmission in conjunction with 4 or 6-cylinder engines in the Golf 1998 > and Jetta 1999 >.

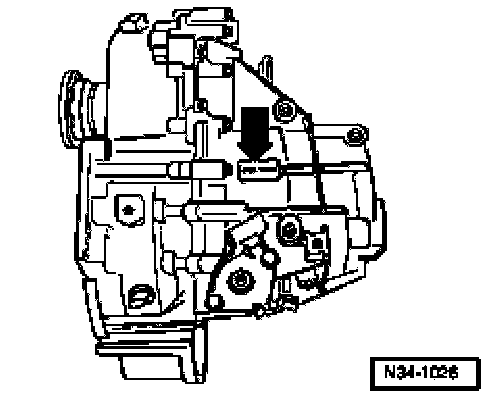

Location on transmission
Code letters and date of manufacture (arrow)





Code letters and date of transmission manufacture (arrow)

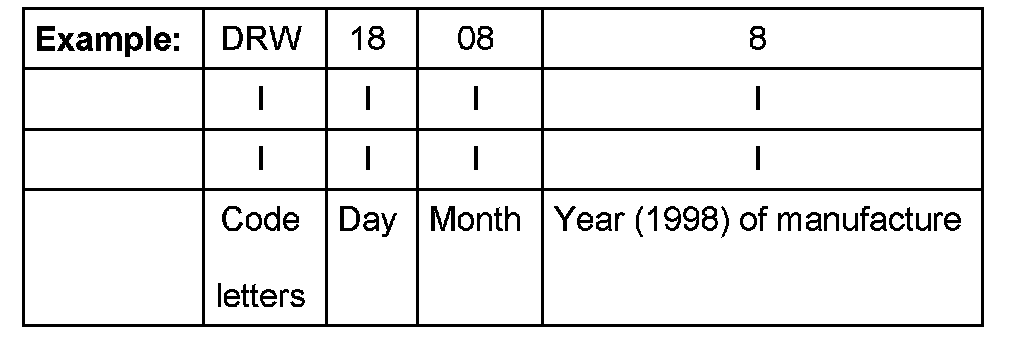

Additional data depends on manufacture.

Note: The transmission code letters are also shown on the vehicle identification plates.
