Trans Housing & Selector Mechanism, Removing and Installing

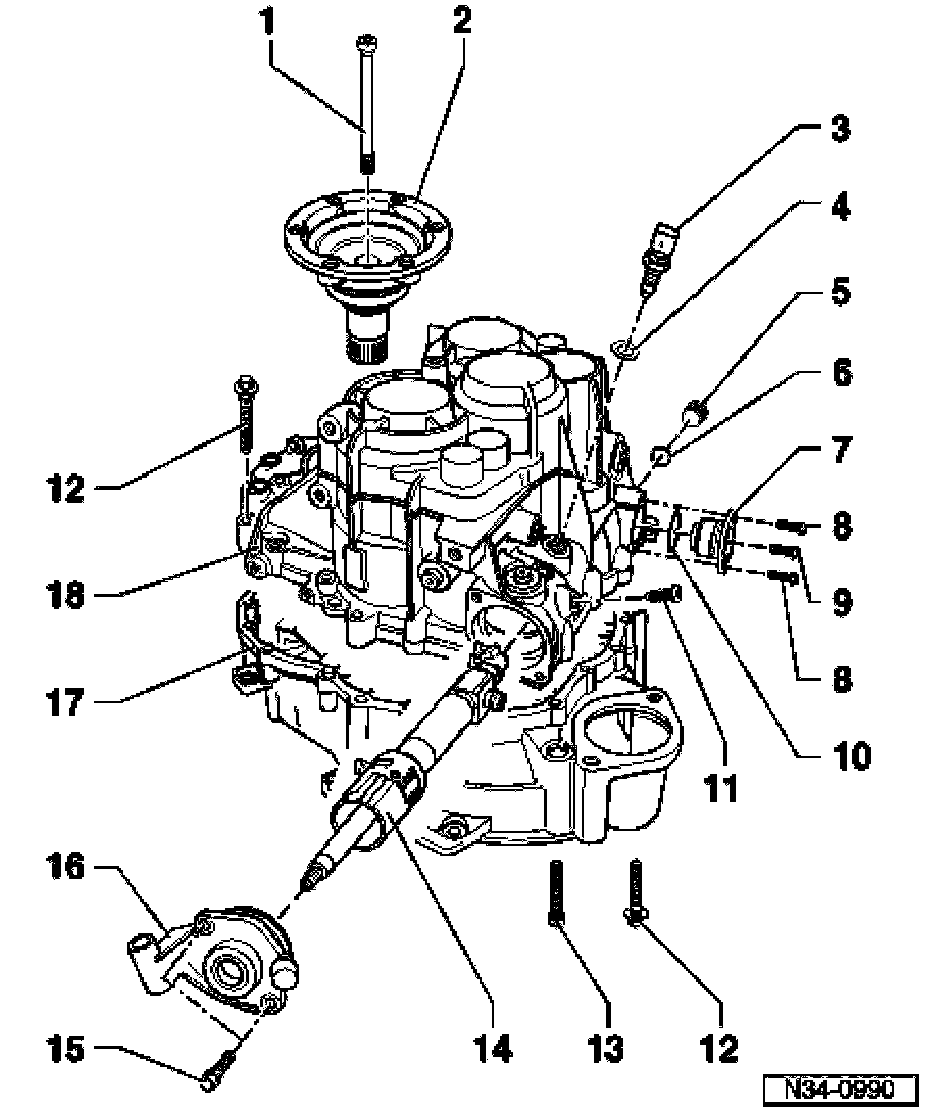

Transmission housing and selector mechanism, removing and installing
1 - Countersunk head bolt, 25 Nm
3 - Back-up light switch, 20 Nm
4 - Oil seal
^ Always replace
5 - Oil drain plug, 30 Nm
^ Always replace
6 - Oil seal
^ Always replace
7 - Cover plate
8 - Hex bolt, 20 Nm
^ Always replace
9 - Hex bolt, 20 Nm
^ For selector shaft -item 14 - to cover plate
^ Always replace
10 - 0-ring
^ Always replace
^ Insert in groove in cover plate
11 - Locking bolt, 15 Nm
^ For selector shaft gate
^ Always replace
^ Insert with locking fluid D 000 600 A2
12 - Hex bolt, 25 Nm and turn 45° further
^ With attached washer
^ Always replace
13 - Hex bolt, 25 Nm and turn 45° further
^ Without washer
^ Always replace
14 - Selector shaft
15 - Hex bolt, 20 Nm
^ Always replace
16 - Selector mechanism cover
17 - Clutch housing
18 - Transmission housing
